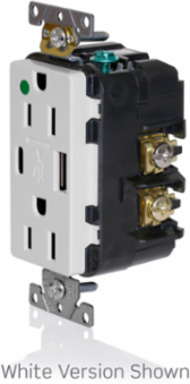

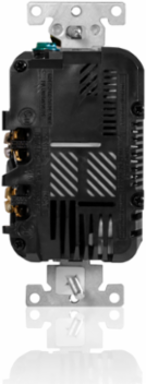

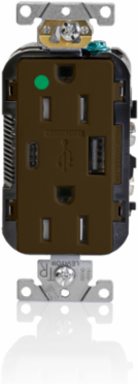

Leviton T5633-HG Tamper-Resistant USB Receptacle 15 Amp 125 Volt with Type A & C USB Ports
- MPN: T5633-HG
- UPC: 078477893395
- PPN: LEV-T5633-HG
CAD
$53.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, with USB, One Type A & One Type C USB Port (5.1 Amp), Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Brown
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Horsepower Rating (AC)
- Horsepower Rating
- 1 HP
Material Specifications
- Grounding Screw
- Plated Steel
- Strap Material
- Galvanized Steel
- Terminal Screws
- Plated Steel
Line ContactsBrass
Terminal ClampBrass
Mechanical Specifications
- Product ID
- Stamped on Strap
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Screw Terminal Torque14-18 in-lb
TerminationBack & Side Wire
Product Features
- Color
- Brown
- Feature
- Power Indication
Device TypeDuplex Receptacle Outlet
GradeHeavy-Duty Hospital Grade
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Operating Temperature
- -10C to 40C
Electrical Specifications
- Amperage
- 15 A
- Pole
- 2.0
- Voltage
- 125 VAC
GroundingSelf Grounding
Short Circuit Current Rating10kA
Wire3.0
Standards & Certifications
- ANSI
- C-73
NEMA5-15R
