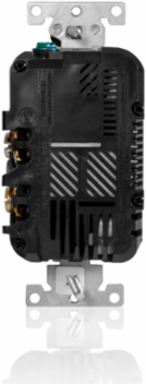

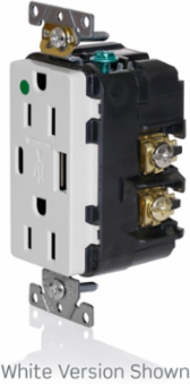

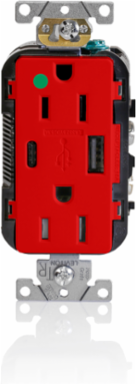

Leviton T5633-HGR Tamper-Resistant USB Receptacle 15 Amp 125 Volt, Heavy-Duty Hospital Grade, Red
- MPN: T5633-HGR
- UPC: 078477893418
- PPN: LEV-T5633-HGR
CAD
$53.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

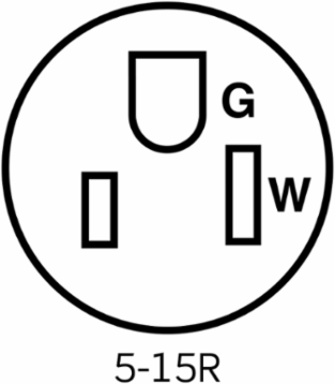

Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, with USB, One Type A & One Type C USB Port (5.1 Amp), Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Red
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Amperage
- 15 A
- Grounding
- Grounding
- Listed
- cCSAus
- Ratings
- 15A-125V
- Warranty
- 2-Year Limited
FCC Part 15Class B
Horsepower Rating15A-1/2 HP
NOM057
Voltage125 VAC
Material Specifications
- Body Material
- Thermoplastic
- Cover Material
- Thermoplastic
- Strap Material
- Steel
ColorRed
GradeHeavy-Duty Hospital Grade
Mechanical Specifications
- Listed
- cCSAus
- Product ID
- Stamped on Strap
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Torque Range
- 12-14 inch pounds
NOM057
Terminal Accom.14-12 AWG
TerminationBack and Side Wire
Warranty5-Year Limited
Product Features
- Brand
- Decora
TypeType A/C Duplex Receptacle
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
- Product ID
- Stamped on Strap
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Torque Range
- 12-14 inch pounds
Operating Temperature-10°C to 40°C
Terminal Accom.14-12 AWG
TerminationBack and Side Wire
Electrical Specifications
- Amperage
- 15 A
- Color
- Red
- Grounding
- Grounding
- Ratings
- 15A-125V
- Voltage
- 125 VAC
Body MaterialThermoplastic
Cover MaterialThermoplastic
Horsepower Rating15A-1/2 HP
Strap MaterialSteel
