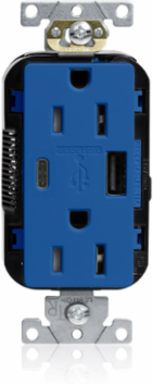

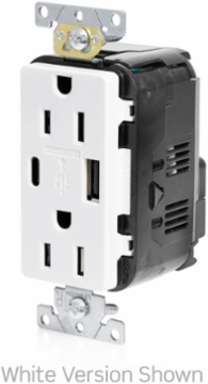

Leviton M56AC-B Lev-Lok Tamper-Resistant USB Receptacle 15A 125V with Dual USB Ports, Blue
- MPN: M56AC-B
- UPC: 078477433843
- PPN: LEV-M56AC-B
CAD
$101.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Lev-Lok Combination Tamper-Resistant Duplex Decora Receptacle and Dual-Port USB Type A-C Charger, NEMA 5-15R, 15A-125V, 2 Pole, 3-Wire Grounding Receptacle – Blue
Features

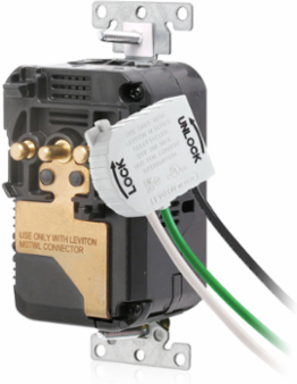

- Lev-Lok employs a simple twist and lock wiring module to provide a safe and secure connection. These devices are pre-wired for 3x faster installations and 5x faster swap outs than traditional wiring. The speed and ease of Lev-Lok allows for optimal time, labor, and cost savings. The M56AC:
- One Type A and one Type C USB port with a combined total of 5.1A of charging power
- Type A USBs are the most recognized and commonly used USB port, used in most desktops, laptops, and tablets, while Type C USBs are emerging as the latest standard for charging and transferring data
- Common applications: health care facilities, lobbies & waiting rooms, airports, hospitality, and educational institutions

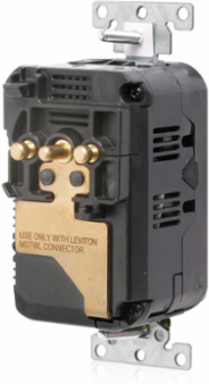

- For use with MSTWL Lev-Lok wiring modules only, modules sold separately *This color is special order only. Lev-Lok Savings Calculator
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Material Specifications
- Body Material
- PBT
- Ground Clips
- Brass
- Locking Pins
- Solid Brass
- Mounting Strap
- Galvanized Steel
- Shutter Mechanism
- Acetal
Face MaterialThermoplastic
Ground ContactsBrass
Mounting Screws#6 Plated Steel
Shutter MaterialThermoplastic
Mechanical Specifications
- Product ID
- Ratings are marked on device
- Termination
- Modular
Strap ConstructionThrough-Strap
Product Features
- Brand
- Lev-Lok
- Device Type
- Combination Device
- Grade
- Commercial Specification Grade
ColorBlue
FeatureUSB Type A and USB Type C|Tamper-Resistant
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating TemperatureMaximum Continuous 40°C, Minimum -10°C (w/o impact)
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- 2000 VAC
- Horsepower Rating
- 1/2 hp
- Temperature Rise
- Max 30°C
- Wire
- 3
Current InterruptingCertified for full-rated current and voltage
GroundingSelf-Grounding
Pole2
Voltage125 VAC
Standards & Certifications
- Applicable Standards
- UL 498, CSA C22.2, No. 42, UL 1310, UL 94, NOM, FCC Class B
NEMAWD-1 and WD-6
USB Specifications
- Single Port Charging Power
- 15W
- USB Cable Compatible
- Type A and Type C
Total Charging Power25W
USB Charger5.1A
