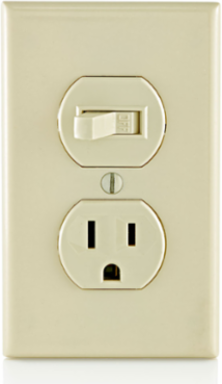

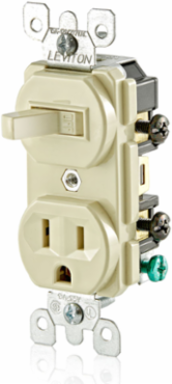

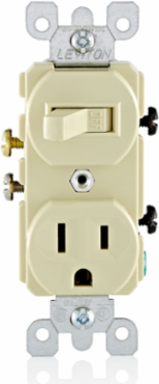

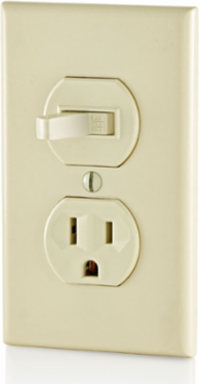

Leviton 5225-T Duplex Style Combination Switch, 15 Amp, 120 Volt, Light Almond
- MPN: 5225-T
- UPC: 078477274880
- PPN: LEV-5225-T
CAD
$18.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 120 Volt, Duplex Style Single-Pole / 5-15R AC Combination Switch, Commercial Grade, Grounding, Side Wired, - Light Almond
Features
- AC quiet switches have silver-cadmium oxide contacts and receptacles have double-wipe contacts for maximum conductivity
- All devices have grounding screw
- Side wired with terminal screws that accept up to #12 copper or copper-clad wire
- Fit standard wallboxes
- Break-off tabs on devices with AC quiet switches permit conversion to seperate feeds
- Backed by a Limited Two-Year Warranty
- Functional – provides multiple controls in a single-gang space
- Durable – impact-resistant thermoplastic nylon construction
- Compatible – designed for use with Leviton traditional wallplates
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Actuator Material
- Thermoplastic
- Body Material
- Thermoplastic
- Feature
- Single-Pole / 5-15R
- HP Rating
- 1/2HP-120V
- Pole
- 1
- Strap Material
- Steel
- Torque Range
- 14 – 18 in.-lbs
- Voltage
- 120 VAC
Amperage15 A
ColorLight Almond
GroundingGrounding
Max. Amperage12 Amp
Standards and CertificationsUL/CSA
TerminationSide
TypeDuplex Style Combination Switch
Warranty2-Year Limited
