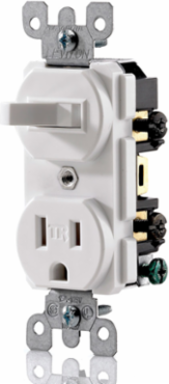

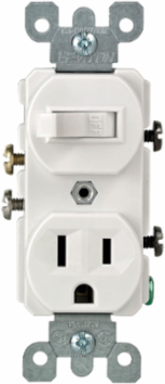

Leviton 5225-W Duplex Style 15 Amp / 120 Volt Combination Switch, Grounding, Thermoplastic Construction
Leviton 5225-W Duplex Style 15 Amp / 120 Volt Combination Switch, Grounding, Thermoplastic Construction
- MPN: 5225-W
- UPC: 078477965849
- PPN: LEV-5225-W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$18.05/ EA
Description
15 Amp, 120 Volt, Duplex Style Single-Pole / 5-15R AC Combination Switch, Commercial Grade, Grounding, Side Wired, - White
Features
- AC quiet switches have silver-cadmium oxide contacts and receptacles have double-wipe contacts for maximum conductivity
- All devices have grounding screw
- Side wired with terminal screws that accept up to #12 copper or copper-clad wire
- Fit standard wallboxes
- Break-off tabs on devices with AC quiet switches permit conversion to seperate feeds
- Backed by a Limited Two-Year Warranty
- Functional – provides multiple controls in a single-gang space
- Durable – impact-resistant thermoplastic nylon construction
- Compatible – designed for use with Leviton traditional wallplates
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL Standard
- UL 20
CSA C22.2 No. 111File #152105
NOM057
Warranty2-Year Limited
Material Specifications
- Actuator Material
- Thermoplastic
- Color
- White
Body MaterialThermoplastic
Strap MaterialSteel
Mechanical Specifications
- Product ID
- Stamped on Strap
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Torque Range
- 14 – 18 in.-lbs
Terminal Accom.14-12 AWG
TerminationSide
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Amperage
- 15 A
- Product Type
- Switch/Outlet Combo
- Voltage
- 120 VAC
FeatureSingle-Pole / 5-15R
TypeDuplex Style Combination Switch
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 65°C
Electrical Specifications
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Overload UL20 Test
- 100 cycles of OL at 4.8 times rated current
- Receptacle Amperage
- 15 Amp
- Switch Amperage
- 15 Amp
- Temperature Rise
- Maximum 30 degrees C rise
GroundingGrounding
Pole1
Receptacle Voltage125V AC
Switch Voltage120V AC
AC Horsepower Ratings
- HP Rating
- 1/2HP-120V
Max. Amperage12 Amp
