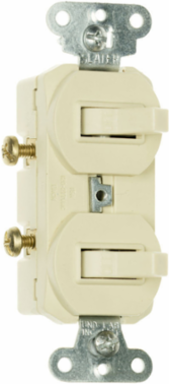

Pass & Seymour 690IG Double Combination Switch, 15A, 120/277V, Ivory, 1.32 Inch Width
- MPN: 690IG
- UPC: 785007690101
- PPN: P-S-690IG
CAD
$11.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Double Combination Switch, 15A, 120/277V, Ivory, 1.32 Inch Width
Features
- Easily accessible break-off separate or common feed.
- Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
- Side wire #12 and #14 AWG.
- Two devices fit into the space of one.
- Grounding combination devices meet NEC Requirements.
- Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.94 in
- Height
- 4.06 in
- Finish
- Satin
- Material
- Thermoplastic
- Type
- Switch
- Load Type
- LED
- Load Type
- Xenon
- Voltage
- 120 VAC
- Type
- Combination
- Number of Gangs
- 1
- Load Type
- Universal
- Indoor/Outdoor
- Indoor
- Type
- Tamper-Resistant
- Mounting Type
- Wall Box
- Wall Plate Included
- No
- Requires Neutral Wire
- Yes
- Connection Location
- Side Only
- Application Sector
- Residential
- Wire Connection Type
- Screw Terminals
- Terminal Accommodation
- #14 AWG - #12 AWG
ColorIvory
Width1.32 in
Country of OriginMexico
Product LinePass & Seymour
Load TypeCFL
Amperage15.0 A
StandardUL 498
Voltage277 VAC
Load TypeHalogen
Switch TypeToggle
FeaturesCombination
Load TypeFluorescent
Load TypeIncandescent
Number of Switches2.0
Throw TypeSingle Throw
Number of PolesSingle Pole
Application SectorHospitality
Load Rating15 A @ 120/277 VAC
Warranty Type1-Year Limited Warranty
Special FeaturesTwo devices fits in one space, side wire
