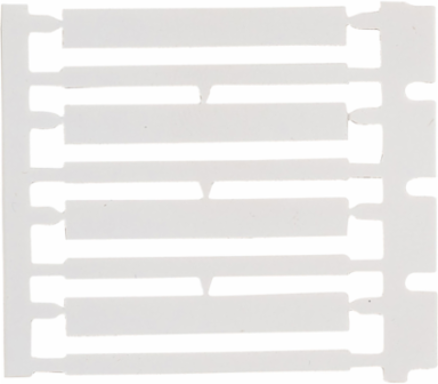

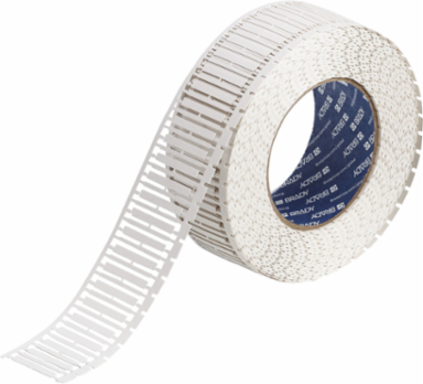

Brady DSTHT-30-390-2.5 DuraSleeve Series Polypropylene Wire Marker Inserts and Carriers, REPAIRED BY INITIALS: DATE: Write-on Inspection Labels, 0.163" H x 1.181" W, Roll of 2500 Labels, White
- MPN: DSTHT-30-390-2.5
- UPC: 662820193036
- PPN: BRD-DSTHT-30-390-2.5
- UNSPSC: 55121612
CAD
$1879.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
DuraSleeve® Polypropylene Inserts (B-390) are printable, rigid inserts designed to be printed and affixed to a wire using extruded, clear PVC Wire Marking Carriers.
Features
- Inserts are supplied roll form formatted for thermal transfer printing on the TLS 2200® Thermal Labeling System and benchtop printers
- B-390 material meets the requirements of a halogen-free material per DIN VDE 0472 part 815
- Service temperature of -40°F to 212°F (-40°C to 100°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100
- Quantity per Roll
- 2500
- Recommended Ribbon
- R6206
- Shape
- Rectangle
- Total Qty per Pack
- 2500 Insert(s) / Roll
- Trade Name
- DuraSleeve®
- Brady Material Number
- B-390
- Resistance Properties
- Chemical-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Dimensions (Metric)
- 30.00 mm W x 4.14 mm H
- Height (in/ft/yd)
- 0.163 in
- Label/Tape Size (in/ft/yd)
- 0.163 in H x 1.181 in W
- Maximum Service Temperature °F
- 212 °F
- Minimum Service Temperature °F
- -40 °F
- Printable Area Dimensions (Metric)
- 30 mm W
- Printable Area Width (mm/cm/m)
- 30 mm
- Size - Width (mm)
- 30.00 mm
- Thickness (mm/cm/m)
- 0.457 mm
- Width (in/ft/yd)
- 1.181 in
Brand NameBrady®
Enables Industry ComplianceASTM G 155; Halogen Free (DIN VDE 0472 part 815); MIL-M-81531; MIL-STD-202F
For Use with PrinterBradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionWire Marker Insert
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP12; i7100
Quantity per Row1
Ribbon SeriesR6000HF
Suggested Ribbon SeriesR6200
Total Quantity2500
Adhesive (Y/N)No
MaterialPolypropylene
SAP B-NumberB-390
Dimensions0.163 in H x 1.181 in W
Dimensions 20.163 in H x 1.181 in W
Height (mm/cm/m)4.14 mm
Maximum Service Temperature °C100 °C
Minimum Service Temperature °C-40 °C
Printable Area Dimensions1.18 in W
Printable Area Width (in/ft/yd)1.18 in
Sign Size-General0.163 in x 1.181 in
Thickness (in/ft/yd)0.018 in
Vertical Repeat0.402 in
Width (mm/cm/m)30 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
