Tripp Lite

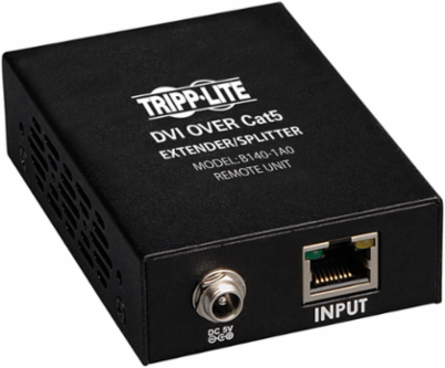

Tripp Lite B140-1A0 DVI over Cat5/Cat6 Active Extender, Box-Style Remote Video Receiver, Up to 200 ft., TAA

DVI over Cat5/Cat6 Active Extender, Box-Style Remote Video Receiver, Up to 200 ft., TAA
DVI over Cat5/Cat6 Active Extender, Box-Style Remote Video Receiver, Up to 200 ft., TAA
DVI over Cat5/Cat6 Active Extender, Box-Style Remote Video Receiver, Up to 200 ft., TAA
  • MPN: B140-1A0
  • UPC: 037332156631
  • PPN: TRP-B140-1A0

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$281.56/ EA

Description

Transmit a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable

Features

  • For use with B140-002 or B140-004 extender/splitter transmitter units
  • Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
  • Extends a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
  • Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
  • Can further expand the range and number of monitors by adding B140-110 repeaters
  • Compatible with all operating systems
  • Plug and play, no software or drivers required

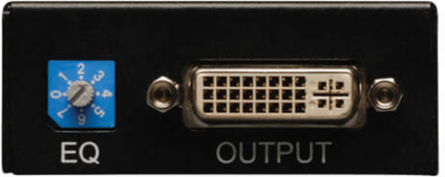

  • Features a built-in Equalization control for adjustment of the video image
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 1-year limited warranty

Specifications

Features & Specifications

Technology
DVI

Connections

Ports
1
Side B - Connector 1
DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Side A - Connector 1RJ45 (FEMALE)

Physical

Color
Black
Shipping Dimensions (hwd / in.)
2.20 x 7.20 x 6.50
Unit Dimensions (hwd / in.)
1 x 2.5 x 3.6

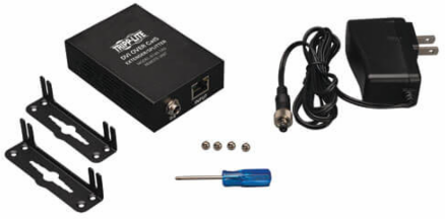

Included Mounting AccessoriesYes
Shipping Weight (lbs.)1.08

Communications

Max 1024 x 768 Range (ft)
200
Max 1440 x 900 Range (ft)
200
Max 1080P Range (ft)
150
Max 640 x 480 Range (ft)
200
Max 1600 x 1200 Range (ft)
200
Max 480P Range (ft)200
Max 1080i Range (ft)150
Max 480i Range (ft)200
Max 800 x 600 Range (ft)200
Max 720P Range (ft)200

Overview

UPC Code
037332156631
AC AdapterInput: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.

Warranty

Product Warranty Period (Worldwide)
1-year limited warranty
