Tripp Lite B140-101X DVI over Cat5/Cat6 Active Extender Kit, Box-Style Video Transmitter & Receiver, Up to 200 ft., TAA
Tripp Lite B140-101X DVI over Cat5/Cat6 Active Extender Kit, Box-Style Video Transmitter & Receiver, Up to 200 ft., TAA
- MPN: B140-101X
- UPC: 037332154095
- PPN: TRP-B140-101X
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$452.95/ EA
Description
Transmit a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable
Features

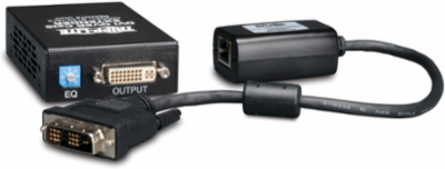

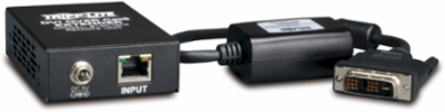

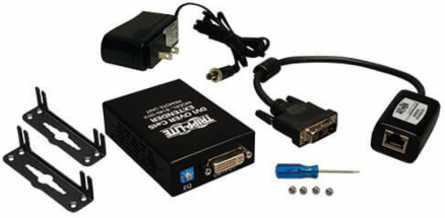

- Extender kit comes with transmitter and receiver units
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Can further expand the range and number of monitors by adding B140-110 repeaters
- Compatible with all operating systems
- Plug and play, no software or drivers required

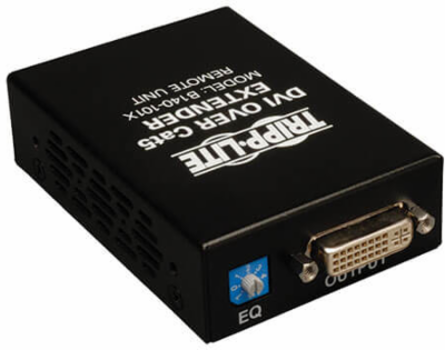

- Features a built-in Equalization control for adjustment of the video image
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1-year limited warranty
Specifications
Features & Specifications
- Technology
- DVI
Connections
- Ports
- 1
- Side A - Connector 2
- RJ45 (FEMALE)
- Side B - Connector 2
- RJ45 (FEMALE)
Side A - Connector 1DVI-D SINGLE LINK (MALE)
Side B - Connector 1DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Physical
- Color
- Black
- Shipping Weight (lbs.)
- 1.10
Shipping Dimensions (hwd / in.)2.00 x 6.20 x 8.30
User Interface, Alerts & Controls
- LED Indicators
- The Green RJ45 LED on the local unit illuminates to indicate it is connected to and receiving power from the source. The Orange RJ45 LED on the local unit does not illuminate. The Green RJ45 LED on the remote unit illuminates to indicate it is receiving power from the external power supply. The Orange RJ45 LED on the remote unit illuminates to indicate it is connected to the local unit and receiving a signal from the source.
Communications
- Max 1024 x 768 Range (ft)
- 200
- Max 1440 x 900 Range (ft)
- 150
- Max 1080P Range (ft)
- 150
- Max 640 x 480 Range (ft)
- 200
- Max 1600 x 1200 Range (ft)
- 150
Max 480P Range (ft)200
Max 1080i Range (ft)150
Max 480i Range (ft)200
Max 800 x 600 Range (ft)200
Max 720P Range (ft)150
Overview
- UPC Code
- 037332154095
AC AdapterInput: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
Warranty
- Product Warranty Period (Worldwide)
- 1-year limited warranty
