Tripp Lite B140-101 DVI over Cat5/Cat6 Passive Extender Kit, Box-Style Video Transmitter & Receiver, Up to 100 ft., TAA
Tripp Lite B140-101 DVI over Cat5/Cat6 Passive Extender Kit, Box-Style Video Transmitter & Receiver, Up to 100 ft., TAA
- MPN: B140-101
- UPC: 037332154088
- PPN: TRP-B140-101
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$153.26/ EA
Description

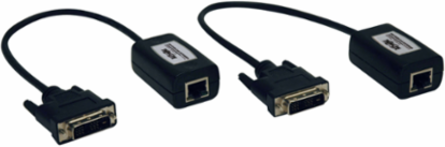

Transmit a DVI-D Single-Link signal up to 100 ft. away using a single Cat5e/6 patch cable
Features
- Extender kit comes with transmitter and receiver units
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft.
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Compatible with all operating systems
- Plug and play, no external power, software or drivers required
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1-year limited warranty
Specifications
Features & Specifications
- Technology
- DVI
Connections
- Ports
- 1
- Side A - Connector 2
- RJ45 (FEMALE)
- Side B - Connector 2
- RJ45 (FEMALE)
Side A - Connector 1DVI-D SINGLE LINK (MALE)
Side B - Connector 1DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Physical
- Color
- Black
- Shipping Weight (lbs.)
- 0.44
Shipping Dimensions (hwd / in.)1.70 x 7.90 x 5.60
User Interface, Alerts & Controls
- LED Indicators
- The Green RJ45 LED on the local unit illuminates to indicate it is connected to and receiving power from the source. The Green RJ45 LED on the remote unit illuminates to indicate it is connected to and receiving power from the monitor. The Orange RJ45 LEDs does not illuminate.
Communications
- Max 1024 x 768 Range (ft)
- 100
- Max 1440 x 900 Range (ft)
- 100
- Max 1080P Range (ft)
- 50
- Max 640 x 480 Range (ft)
- 100
- Max 1600 x 1200 Range (ft)
- 100
Max 480P Range (ft)100
Max 1080i Range (ft)50
Max 480i Range (ft)100
Max 800 x 600 Range (ft)100
Max 720P Range (ft)100
Overview
- UPC Code
- 037332154088
Warranty
- Product Warranty Period (Worldwide)
- 1-year limited warranty
