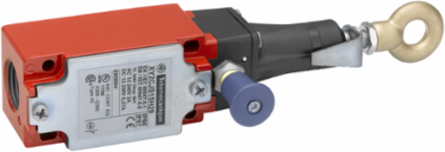

Telemecanique Sensors XY2CJS17H29 Latching emergency stop rope pull switch XY2CJ, 2NC, M20
- MPN: XY2CJS17H29
- PPN: TES-XY2CJS17H29
CAD
$228.78
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Latching emergency stop rope pull switch XY2CJ, 2NC, M20
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Local signalling | Color indicator |
|---|---|
| Head material | PA (polyamide) |
| Reset | By pull button |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminal, 1 x 0.5...2 x 1.5 mm² |
| Safety reliability data | B10d = 500000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear |
| Positive opening | With conforming to IEC 60947-5-1 |
| Terminals description ISO n°1 | (11-22)NC (21-22)NC |
| Body material | Zamak |
|---|---|
| Cover material | Galvanised steel |
| Contacts type and composition | 2 NC |
| Trigger cable anchor point | RH or LH side |
| Safety level | Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| Marking | CE |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Compatibility code | XY2CJ |
Environment
| Standards | CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 IEC 60947-5-5 ISO 13850 machinery directive 2006/42/EC UL 508 work equipment directive 2009/104/EC |
|---|---|
| Protective treatment | TC |
| Shock resistance | 50 gn 11 ms conforming to IEC 60068-2-27 |
| Product certifications | UL category NISD emergency stop devices, CSA, CCC, EAC |
|---|---|
| Vibration resistance | 10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 |
Main
| Range of product | Telemecanique Emergency stop rope pull switches XY2C |
|---|---|
| Device short name | XY2C |
| Overvoltage category | Class I conforming to IEC 61140 |
| Product or component type | Latching emergency stop rope pull switch |
|---|---|
| Housing colour | Red RAL 3000 |
