nVent Hoffman E1PBSS Pushbutton Screw Cover Type 4X, 1PBx30.5mm, SS304
- MPN: E1PBSS
- UPC: 783510596101
- PPN: HOF-E1PBSS
- UNSPSC: 39121326
CAD
$407.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

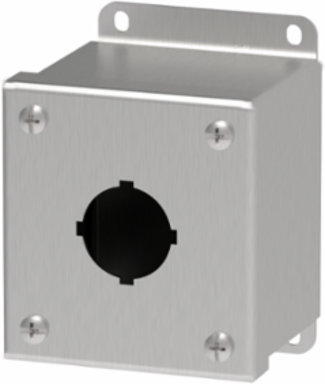

This stainless steel enclosure is pre-punched for easy installation of 30.5mm or 22.5mm components. This Pushbutton Screw Cover Type 4X, E1PBSS item measures 1PBx30.5mm with a material of SS304.
Features
- Prepunched 30.5mm or 22.5mm holes
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 12
- IP Rating
- IP66
- Number of Holes
- 1
- Mounting (G x H)
- 102 x 60 mm
- Width (W)
- 108 mm
- Thickness (T)
- 1.98 mm
- Material
- Type 304 Stainless Steel
- Gauge
- 16
- Bonding Provision
- On door; grounding nut on body
- Cover Screw
- Captivated, thread into sealed wells
NEMA Rating4X Watertight, corrosion-resistant
Hole Size30.5 mm
Overall Dimensions (L x W)114 x 88 mm
Height (H)89 mm
Depth (D)70 mm
Weight1.5 kg
FinishBrushed #4
SeamsContinuously welded and ground smooth
Pushbutton Hole Style4-way oil-tight
GasketOil-resistant
