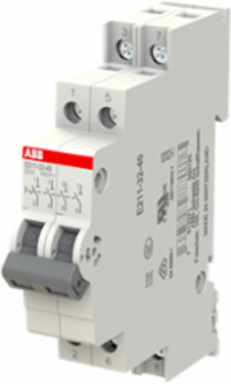

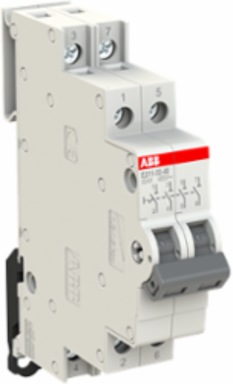

ABB E211-32-40 E211-32-40ON-OFF Switch,32 A,acc. to EN 250/400 V AC,4NO,0NC,0CO, El. Color:Grey, MW:1
- MPN: E211-32-40
- UPC: 804325648806
- PPN: ABB-E211-32-40
CAD
$89.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
On-Off switches according DIN EN 60669-1, VDE 0632 Part 1, Rated currents: 16/25/32 A, 250/400 VACPDC, Contacts: 1 NO/2 NO/3 NO/4 NO, Module width: 0,5/1
Specifications
Installation
| Instructions and Manuals | No document needed |
|---|
Dimensions
| Width in Number of Modular Spacings | 1 |
|---|---|
| Product Net Height | 85 mm |
| Product Net Weight | 90 g |
| Product Net Width | 18 mm |
|---|---|
| Product Net Depth / Length | 68 mm |
| Built-In Depth (t2) | 68 mm |
Technical
| Standards | EN60669-1EN60669-2-4IEC/EN60947-3IEC60068-2-2IEC60068-2-1IEC60068-2-30VDE0632-1VDE0632-2-4UL508 |
|---|---|
| Rated Operational Voltage | acc. to EN 250/400 V ACacc. to UL 508 240 V AC |
| Input Voltage Type | AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 3 kA |
| Minimum Switching Capacity | 24 V AC25 mA |
| Contact Position Indication | ON / OFF |
| Number of Contacts CO | 0 |
| Number of Contacts NO | 4 |
| Number of Main Contacts NO | 4 |
| Tightening Torque | 1.2-1.5 N·m |
| Switch Type | Double Interrupting Contacts |
| Options Provided | 4 NO |
| Cover Color | Grey |
| Connecting Capacity | Solid 1x1…6 mm²Solid 2x2.5 mm²Flexible 1x0.75…2x2.5 mm² |
| Rated Operational Current DC-22A (Ie) | (50 V DC) 32 A(200 V DC) 3 A |
| Rated Voltage (Ur) | Minimum 400 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Current (In) | 32 A |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | 5.46 W |
| Number of Poles | 4 |
| Number of Contacts NC | 0 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts CO (SPDT) | 0 |
| Utilization Category | Switching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22A)Switching of mixed resistive and inductive loads, including moderate overloads (i.e. shunt motors) - frequent actuation (DC-22A) |
| Material of Conductor | Copper |
| Remarks | Sealable in the On and Off positions |
| Control Element Color | Grey |
| Rated Operational Current AC-22A (Ie) | (400 V) 32 A |
Classifications
| ETIM 9 | EC001545 - Main switch for distribution board |
|---|---|
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CN8 | 85365053 |
| Object Classification Code | S |
| EPLAN Function Definition | Switch / pushbutton / Quadruple switch / pushbutton, 8 connection points / Switch, quadruple NO contact 1_2_3_4_5_6_7_8 |
|---|---|
| WEEE B2C / B2B | Business To Consumer |
| eClass | V11.0 : 27142301 |
Environmental
| Ambient Air Temperature | Operation -25...+55 °CStorage -40...+70 °C |
|---|---|
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CCC005047D0201 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Degree of Protection | IP20 |
|---|---|
| RoHS Information | 2CCC441013D0201 |
| Environmental Information | 2CCC441003C0201 |
Technical UL/CSA
| Short-Circuit Current Rating (SCCR) | 3 kA |
|---|
Ordering
| Minimum Order Quantity | 10 piece |
|---|---|
| Package Level 1 Gross Weight | 95 g |
| E-Number (Switzerland) | 437370438 |
| Package Level 1 Units | box 10 piece |
|---|---|
| E-Number (Finland) | 3602411 |
