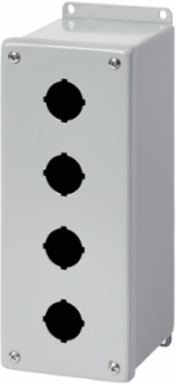

nVent Hoffman E3PBXM4 Extra-Deep Pushbutton Enclosure Type 4, 8x4x4.75 Inch, Gray, Steel, NEMA 12
- MPN: E3PBXM4
- UPC: 783510304164
- PPN: HOF-E3PBXM4
- UNSPSC: 39121326
CAD
$234.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Extra deep, Type 4, Pushbutton Enclosures provide space for deep, contact terminal blocks. This Extra-Deep Pushbutton Enclosure Type 4, E3PBXM4 item measures 3PBx22.5mm 8x4x4.75in with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Captivated stainless steel cover screws thread into sealed wells
- Grounding stud on body
- Bonding provision on cover
- High-performance polyurethane gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 6.00 x 4.00 x 5.00 in. (152 x 102 x 127 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- 30.5-mm or 22.5-mm size holes
- External wall-mounting brackets
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 102
- Protection Rating
- NEMA Type 12
- Material
- Mild Steel
- Color
- Gray
- Thickness (T)
- 1.9
- Hole Quantity
- 3
- Overall Dimensions (L x W)
- 229 x 107
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)203
Depth (D)121
Product FamilyPushButton
FinishPowder Coated
Color CodeANSI 61
Hole Size (HS)22.5
Mounting (G x H)216 x 79
IP RatingIP66
Weight4.2
