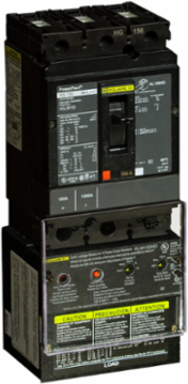

Square D ELM150HD PowerPacT H Earth Leakage Module, 15-150A, 240-600V

MPN: ELM150HD
UPC: 785901565208
PPN: SCH-ELM150HD
UNSPSC: 39121613

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Earth Leakage Module (ELM) is an add on module which provides low level ground fault sensing and relay functions. The add on ELM module features adjustable ground fault pickup levels as low as 30mA and adjustable ground fault delays from instantaneous to 500ms. It has an integral ground fault push-to-test feature. All ELMs are supplied for I-Line mounting and are convertible to unit mount by removing the I-Line mounting feet. A 48VDC shunt trip is required in the circuit breaker, either field or factory installed. This module has a rated operational voltage of 240 to 600VAC and current of 15 to 150A. The module complies with UL and CSA standards.

Features

Adjustable ground fault pickup levels as low as 30 mA for sensing and relay functions
Internal ground fault push to test feature for testing companion circuit breaker
Compatible with PowerPacT H circuit breakers
Product characteristics conformity is certified by the Underwriters Laboratories (UL)
Complies with UL 489 listed, CSA, and IEC standards

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Complementary Attributes

Line Rated Current	15-150 A

Ue Rated Operational Voltage	240...600 V

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Circuit Breaker Type	HJ, HG, HL, HD
Certificate Agency	CSA, UL
Earth Leakage Protection Time Delay	500 ms, instantaneous
Local Publishable Date	2025-11-13
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2539
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Electrical Connection To Mcb	plug in
Local Signalling	trip indicator
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	PowerPact
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Tightening Torque	9-9 N.m 2.5-50 mm² (14 AWG...1/0 AWG)4.5-4.5 N.m 2.5-50 mm² (12 AWG...10 AWG), 17-17 N.m 50-120 mm² (4 AWG...1 AWG), 9-9 N.m 2.5-50 mm² (12 AWG...1/0 AWG)
Earth Leakage Sensitivity	1000 mA, 30 mA, 3000 mA, 300 mA, 100 mA
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Network Type	AC
Product Or Component Type	earth leakage add-on block
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Customs Code	8536308000

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
