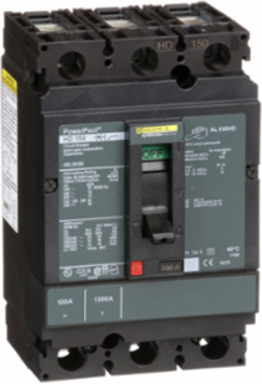

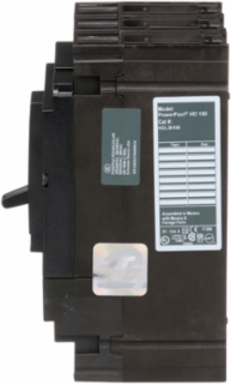

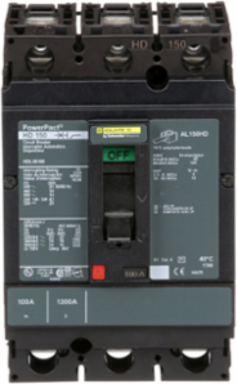

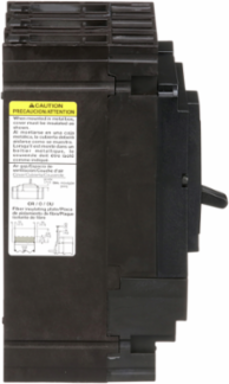

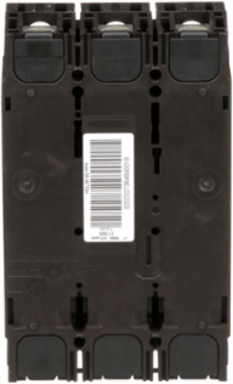

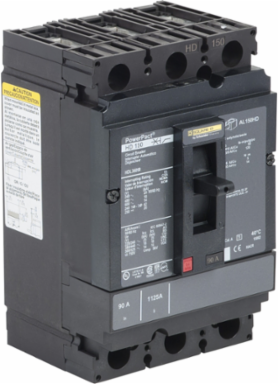

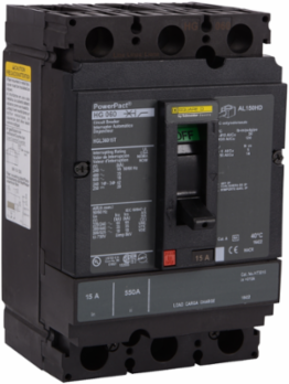

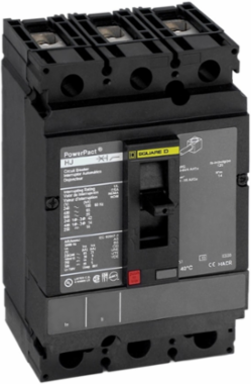

Square D HDL36100 PowerPact H Circuit Breaker 100A 3 Poles 600VAC 14kA Thermal Magnetic
- MPN: HDL36100
- UPC: 785901839934
- PPN: SCH-HDL36100
- UNSPSC: 39121601
CAD
$2263.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Features
- Engineered within the advanced PowerPacT H-Frame family, this 3-pole unit delivers exceptional circuit protection using a sophisticated thermal-magnetic tripping mechanism. It utilizes a factory-calibrated bimetallic element to monitor and clear sustained thermal overloads, paired with an instantaneous magnetic ambient sensor that opens immediately during massive short-circuit faults to isolate the downstream system from grid damage.
- This industrial-grade breaker is engineered for a continuous current rating of 100A at a maximum operational voltage threshold of 600V AC (or 250V DC). This exact operational envelope allows it to comfortably control high-capacity 3-phase machinery, commercial HVAC chillers, and localized subpanel feed structures across high-voltage distribution networks.
- The device comes factory-outfitted with Schneider Electric's premium EverLink lug matrix on both the line and load sides. This specialized terminal system utilizes a patented control mechanism that maintains persistent, high-torque pressure on the electrical conductors, completely compensating for wire strand compression over time to accept wire sizes from AWG 14 up to AWG 3/0 in aluminum or copper.
- Fully manufactured to satisfy rigid North American building and industrial standards, this circuit breaker carries complete UL Listed, CSA Certified, IEC, and CE approvals. This comprehensive testing profile provides field inspectors and plant engineers with certified safety documentation, ensuring seamless municipal code sign-offs and reliable continuous plant operation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 86 mm |
| Weight | 1860 g |
|---|
Communications & Management Attributes
| Communication Interface | Modbus, Ethernet |
|---|
Physical Attributes
| Color | Black |
|---|
| Wire Stripping Length | 16 mm |
|---|
Complementary Attributes
| Ics Rated Service Breaking Capacity | 25 kA 220/240 V AC 50/60 Hz IEC 60947-218 kA 380/440/415 V AC 50/60 Hz IEC 60947-214 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2 |
|---|---|
| Ue Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-3 |
| Uimp Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Line Rated Current | 100-100 A |
|---|---|
| Ui Rated Insulation Voltage | 750 V IEC 60947-2 |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Connection | lugs, line, lugs, load |
| Tightening Torque | 5-5 N.m 2.5-6 mm² (14 AWG...10 AWG), 14-14 N.m 10-95 mm² (8 AWG...3/0 AWG) |
| Carbon Footprint Of The Distribution Phase A4 | 0.39096054033584315, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.01873387492414746, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 228 kg CO2 eq., 227.71503818252762 |
| Local Publishable Date | 2026-03-25 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2206027_V2 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2539 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 14 AWG...3/0 AWG aluminium/copper terminal |
| Continuous Current Rating | 80 % |
| Device Application | distribution |
| Local Signalling | switched off (OFF) 1 trip indicator green) |
| Magnetic Tripping Current | 1700-1700 A |
| Mounting Support | lug |
| Number Of Poles | 3P |
| Product Name | PowerPact H |
| Protected Poles Description | 3t |
| Quantity Per Set | 1 |
| Returnability | Yes |
| Suitability For Isolation | yes IEC 60947-2 |
| Terminal Identifier | AL150HD |
| Trip Unit Technology | thermal-magnetic |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 104 mm |
| Customs Code | 8536200020 |
| Functional Unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 45 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Number Of Slots | 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in) |
| Certificate Agency | UL, CSA, NOM |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 3 kg CO2 eq., 3.477984605914122 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 9 kg CO2 eq., 9.46533022433944 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Service Catalog Item | Finished good |
| Weee Product Category | 4 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Control Type | toggle |
| Energy Efficiency Optimized | False |
| Magnetic Hold Current | 900 A |
| Mounting Mode | unit mount lug) |
| Network Frequency | 50/60 Hz |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | circuit breaker |
| Quality Labels | CE |
| Range | PowerPact |
| Software Version | v6.2.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 241 kg CO2 eq. |
| Utilisation Category | category A |
| Database Version | 2024-01 |
| Height Nominal | 163 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Operating Altitude | < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2206027_V2 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-05-01 |
| Psr Version | PSR-0005-ed3-2023 12 08 |
| Ambient Air Temperature For Storage | -50-85 °C, -50-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 241.06804742804115 |
| Environmental Disclosure | ENVPEP2206027EN |
| Ip Degree Of Protection | front cover IP40 IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2206027EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | circuit breaker |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
