Schneider Electric NSYEL2225D8 Earthing Wire 25 mm², 220 mm Length, 8.3 mm Eyelet Hole, Set of 10
- MPN: NSYEL2225D8
- PPN: SCH-NSYEL2225D8
CAD
$33.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

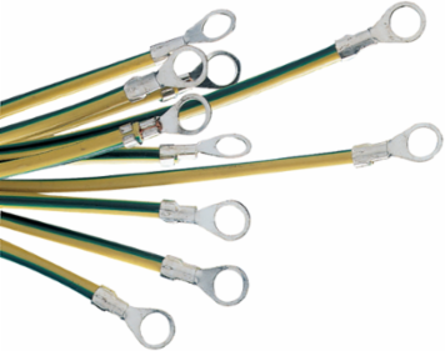

Designed for reliability and versatility, this earthing wire from Schneider Electric features a nominal cross-section of 25 mm² and a length of 220 mm, making it suitable for a variety of applications. With an eyelet hole measuring 8.3 mm, it ensures secure connections through a nut and washer fixing mode, ideal for effective grounding. Crafted from high-quality PVC with a green and yellow sheath and a brass and copper alloy terminal, this product is free from toxic heavy metals and complies with environmental standards, reinforcing its commitment to safety and sustainability. Packaged in sets of ten, this earthing lead is a practical choice for professionals seeking dependable solutions in electrical installations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France
Length8.66 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Material
- PVC (polyvinyl chloride) green and yellow sheath, brass and copper alloy terminal
- Local Publishable Date
- 2026-04-18
- Stocking Flag
- Y
- Device Type
- Busway & cable - busbar, connection, grounding
- Traceability
- No
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- 1 lead
- Fixing Mode
- nut and washer - on earth connection
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 10
- Returnability
- No
- Warranty In Months
- 18
- Length Total
- 220 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Diameter8.3 mm
Nominal Cross Section25 mm²
Product Or Component Typeearthing wire
RangePanelSeT
Sustainable PackagingNo
Pep CodeENVPEP1001004EN
Length Useful220 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- earthing wire
ETIM
- ETIM 8
- EC002623
ETIM 9EC002623
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
