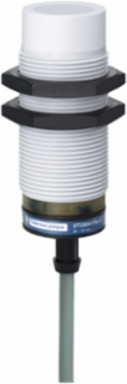

Telemecanique Sensors XT230A1FBL2 Telemecanique Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, cable 2 m
Telemecanique Sensors XT230A1FBL2 Telemecanique Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, cable 2 m
- MPN: XT230A1FBL2
- PPN: TES-XT230A1FBL2
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$436.02/ EA
Description
This product is part of the XS range, an offer of inductive proximity sensors. This capacitive proximity sensor in XT2 cylindrical M30 design. It has fixed body, non flush mountable and frontal detection face. It is ideal for detection of insulated or conductive materials. It supports 15mm nominal sensing distance and 1 NC 2-wire discrete output. It is furnished with 2m cable for electrical connection and M30 x 1.5 thread. It is a sensor with a rated supply voltage of 24V to 240V AC, 50Hz to 60Hz, a current consumption of <4mA and a maximum delay response of 20ms. It is an IP67 rated product. The enclosure is made of plastic. Its dimension is 74.5mm (Length) and weighs 0.27kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE and CETLus. It meets EN/IEC 60947-5-2 standards. It compliant with international standards, certifications in standard and increased range. Ex Osiprox, OsiSense XS and XT inductive and capacitive proximity sensors for non-contact sensing. Capacitive proximity sensors technology for non contact sensing of any material up to 20mm.
Specifications
Environment
- Product Certifications
- cULus
- Resistance To Electromagnetic Fields
- 3 V/m IEC 61000-4-3
- Vibration Resistance
- 10 gn 1 mm 10-55 Hz)IEC 60068-2-6
- Resistance To Electrostatic Discharge
- 4 kV contact IEC 61000-4-2 || 8 kV air IEC 61000-4-2
Ambient Air Temperature For Operation-10-60 °C
StandardsEN/IEC 60947-5-2
Shock Resistance30 gn 11 ms IEC 60068-2-27
Resistance To Fast Transients2 kV IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Iso Thread
- M30 x 1.5
- Status Led
- output state indication 1 LED yellow)
- Repeat Accuracy
- < 5 % Sr
- Maximum Switching Current
- 300 mA
- Marking
- CE
- Net Weight
- 0.27 kg
- Differential Travel
- < 1...20 % Sr
- [Sa] Assured Operating Distance
- 0-11 mm
- Supply Voltage Limits
- 20-265 V AC
- Detection Face
- frontal
Current Consumption< 4 mA
Setting-Upsensitivity by potentiometer
Maximum Voltage Drop<10 V closed)
Threaded Length48.5 mm
Length74.5 mm
Switching Frequency<= 25 Hz
Maximum Delay Recovery30 ms
Maximum Delay First Up200 ms
Wire Insulation MaterialPVC
Adjustment Zone0-17 mm
Specifications
- Electrical Connection
- cable
- Maximum Delay Response
- 30 ms
- Range Of Product
- Telemecanique Capacitive proximity sensors XT
- Sensor Name
- XT2
- Size
- 74.5 mm
- Ip Degree Of Protection
- IP67 double insulation IEC 60529
- [Sn] Nominal Sensing Distance
- 15 mm
- Sensor Type
- capacitive proximity sensor
- Sensor Design
- cylindrical M30
- Output Circuit Type
- AC
Discrete Output Function1 NC
Type Of Output Signaldiscrete
Cable Length2 m
Materialplastic
Wiring Technique2-wire
Body Typefixed
Product Specific Applicationdetection of insulated or conductive materials
Detector Flush Mounting Acceptancenon flush mountable
Enclosure Materialplastic
[Us] Rated Supply Voltage24...240 V AC 50...60 Hz
