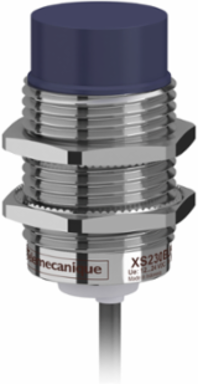

Telemecanique Sensors XS230BLPAL2 inductive sensor XS2 M30, L57mm, brass, Sn15mm, 12..24VDC, cable 2m
- MPN: XS230BLPAL2
- PPN: TES-XS230BLPAL2
- UNSPSC: 39122230
CAD
$125.33
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 30mm, threaded M30 x 1.5. It features a metal cylindrical boby and a 2m long cable. It has a sensing distance of 15mm. Three-wire, DC supply, 12V to 24V, NO function, PNP solid-state output.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Cable Length
- 2 m
- Size
- 57 mm
- Ip Degree Of Protection
- IP67 conforming to IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Sensor Design
- cylindrical M30
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Sensor NameXS2
Wiring Technique3-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance15 mm
Switching Capacity In Ma<= 200 mA overload and short-circuit protection
Enclosure MaterialNickel Plated Brass
Complementary
- Iso Thread
- M30 x 1.5
- Maximum Delay Response
- 0.2 ms
- Operating Zone
- 0-12 mm
- Threaded Length
- 32 mm
- Length
- 57 mm
- Net Weight
- 0.155 kg
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 15 ms
- Detector Flush Mounting Acceptance
- non flush mountable
- Detection Face
- frontal
- Front Material
- PBT
Current Consumption<= 10 mA no-load
Status Ledoutput state 1 LED yellow)
Maximum Voltage Drop<2 V closed)
MarkingCE
Materialmetal
Switching Frequency<= 300 Hz
Maximum Delay Recovery1.4 ms
Supply Voltage Limits10-36 V DC
Wire Insulation MaterialPVC
Cable Composition3 x 0.14 mm²
Output Circuit TypeDC
Environment
- Product Certifications
- CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1110045
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
