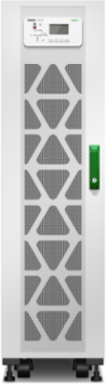

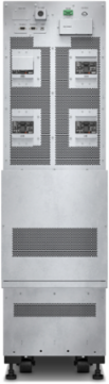

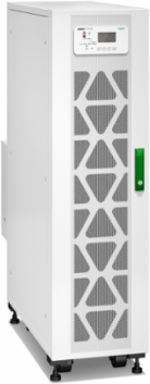

Schneider Electric E3SUPS15KFBS Easy UPS 3S 15 kVA 208V 3:3 UPS for internal batteries, Start-up 5x8
- MPN: E3SUPS15KFBS
- UPC: 731304433682
- PPN: APC-E3SUPS15KFBS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth96 cm
Communications & Management Attributes
- Control Panel
- Touch Screen LCD User Interface
Physical Attributes
- Color
- White RAL 9003)
Complementary Attributes
- Curve Load Maximum
- 100 %
- Maximum Configurable Power In Va
- 15 kVA
- Rated Power In Va
- 15 kVA
Curve Load Minimum1 %
Maximum Input Current Per Phase46 A
Rated Power In W15 kW
Important Information Attributes
- Persona Type Ids
- EUA, OM, PB, SC, VR
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Provided Equipment
- Dust filter, installation manual, Start-Up Service
- Local Data Status
- Publishable
- Pre Comm Date
- 2021-03-30
- Stocking Flag
- Y
- Device Type
- UPS - Data Center and Facility 3 Phase
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2405
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Dangerous Goods Code
- BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID)
- Tier
- 3
- Function Option
- Standard
- Acoustic Level
- 68 dBA
- Curve Fixed Loss
- 0.0090
- Curve Load Minimum
- 1 %
- Curve Square Loss
- 0.0208
- Graph Display
- 1
- Load Power Factor
- from 0.7 leading to 0.7 lagging without any derating
- Maximum Input Current Per Phase
- 46 A
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Easy UPS 3S
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 140 cm
- Output Frequency (Sync To Mains)
- 50 Hz sync to mains60 Hz sync to mains
- Curve X-axis Minimum
- 0 %
- Curve X-axis Units
- percentage
- Curve Y-axis Minimum
- 50 %
- Curve Y-axis Units
- percentage
- Maximum Short Circuit Withstand (Icw)
- 10 kA
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504407018
Persona Type NamesConsumer, Original Equipment Manufacturer, Panel Builder, Electrician, IT Channel Partner
Market SegmentationResidential, Commercial, Industrial
Certificate AgencyUL 1778 5th edition, IEC 62040-2, FCC part 15 class B, IEC 62040-3, cTUVus, ISTA 2B
Local Publishable Date2026-03-02
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionSPIBS
Service Catalog ItemFinished good
Weee Product Category4
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Curve Equationefficiency
Curve Load Maximum100 %
Curve Proportional Loss0.0363
Curve Test Cond IdCurve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with 208V 60Hz input and 208V 60Hz balanced resistive load (PF = 1.0) output.
Input Total Harmonic DistortionLess than 4% for full load
Maximum Configurable Power In Va15 kVA
Overload Operation10 minutes @ 125% and 60 seconds @ 150%
Product Or Component Typeuninterruptible power supply (UPS)
ReturnabilityNo
TopologyDouble Conversion Online
Pep CodeENVPEP2111020EN
Width Nominal38 cm
Curve X-axis Maximum100 %
Curve X-axis Titleload
Curve Y-axis Maximum100 %
Curve Y-axis Titleefficiency
Max Configurable Power (Watts)15 kW
Maximum Short-circuit Current10 kA
Package Weight(Lbs)165 kg
Warranty (In Months)12
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Ambient Air Temperature For Operation
- 0-40 °C
- Eu Rohs Directive
- Compliant By Exemption
- Online Thermal Dissipation
- 1050 W
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Storage Altitude
- 0-15000 m
- Pep Code
- ENVPEP2111020EN
Ambient Air Temperature For Storage-15-40 °C, -15-40 °C
Recycled Metal Content At Cr Level0 %
Environmental DisclosureENVPEP2111020EN
Ip Degree Of ProtectionIP20
Operating Altitude0...4921 ft
Packaging Without Single Use PlasticNo
Relative Humidity0-95 % non-condensing
Storage Relative Humidity0-95 % non-condensing
General Attributes
- Provided Equipment
- Dust filter, installation manual, Start-Up Service
- Range Of Product
- Easy UPS 3S
Product Or Component Typeuninterruptible power supply (UPS)
Output Attributes
- Bypass Type
- Built-in Static Bypass
- Output Voltage
- 208 V AC 3 phase
Other Output Voltages220 V
Contractual Warranty Attributes
- Warranty Period
- 1 year on-site repair or replace with factory authorized Start-Up
Warranty1 year on-site repair or replace with factory authorized Start-Up
Input Attributes
- Input Frequency
- 40 - 70 Hz
- Other Input Voltages
- 220 V
Main Input Voltage208 V AC 3 phase
Batteries & Runtime Attributes
- Battery Voltage
- +/- 120 V, +/- 120 V
- Battery Type
- internal modular battery
Battery Sizelead-acid internal
End Of Discharge Battery Voltage+/- 96 V
Overview Attributes
- Presentation
- High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
