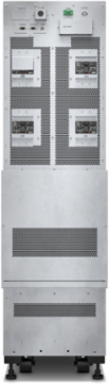

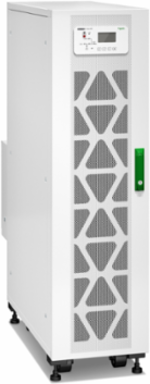

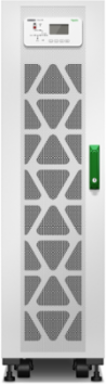

Schneider Electric E3SUPS20KFBS Easy UPS 3S 20 kVA 208V 3:3 UPS for internal batteries, Start-up 5x8
- MPN: E3SUPS20KFBS
- UPC: 731304433699
- PPN: APC-E3SUPS20KFBS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 96 cm |
|---|
Communications & Management Attributes
| Control Panel | Touch Screen LCD User Interface |
|---|
Physical Attributes
| Color | White RAL 9003) |
|---|
Complementary Attributes
| Curve Load Maximum | 100 % |
|---|---|
| Maximum Configurable Power In Va | 20 kVA |
| Rated Power In Va | 20 kVA |
| Curve Load Minimum | 1 % |
|---|---|
| Maximum Input Current Per Phase | 61 A |
| Rated Power In W | 20 kW |
Important Information Attributes
| Persona Type Ids | EUA, OM, PB, SC, VR |
|---|---|
| Market Segmentation Id | RESIDENTIAL, COMMERCIAL, INDUSTRIAL |
| Provided Equipment | Dust filter, installation manual, Start-Up Service |
| Local Data Status | Publishable |
| Pre Comm Date | 2021-03-30 |
| Stocking Flag | Y |
| Device Type | UPS - Data Center and Facility 3 Phase |
| Traceability | Yes |
| Average Life Duration | 10 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2405 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Dangerous Goods Code | BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID) |
| Tier | 3 |
| Function Option | Standard |
| Acoustic Level | 68 dBA |
| Curve Fixed Loss | 0.0081 |
| Curve Load Minimum | 1 % |
| Curve Square Loss | 0.0344 |
| Graph Display | 1 |
| Load Power Factor | from 0.7 leading to 0.7 lagging without any derating |
| Maximum Input Current Per Phase | 61 A |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Easy UPS 3S |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Height Nominal | 140 cm |
| Output Frequency (Sync To Mains) | 50 Hz sync to mains60 Hz sync to mains |
| Curve X-axis Minimum | 0 % |
| Curve X-axis Units | percentage |
| Curve Y-axis Minimum | 50 % |
| Curve Y-axis Units | percentage |
| Maximum Short Circuit Withstand (Icw) | 10 kA |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504407018 |
| Persona Type Names | Consumer, Original Equipment Manufacturer, Panel Builder, Electrician, IT Channel Partner |
|---|---|
| Market Segmentation | Residential, Commercial, Industrial |
| Certificate Agency | UL 1778 5th edition, IEC 62040-2, FCC part 15 class B, IEC 62040-3, cTUVus, ISTA 2B |
| Local Publishable Date | 2026-03-02 |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | SPIBS |
| Service Catalog Item | Finished good |
| Weee Product Category | 4 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Curve Equation | efficiency |
| Curve Load Maximum | 100 % |
| Curve Proportional Loss | 0.0300 |
| Curve Test Cond Id | Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with 208V 60Hz input and 208V 60Hz balanced resistive load (PF = 1.0) output. |
| Input Total Harmonic Distortion | Less than 4% for full load |
| Maximum Configurable Power In Va | 20 kVA |
| Overload Operation | 10 minutes @ 125% and 60 seconds @ 150% |
| Product Or Component Type | uninterruptible power supply (UPS) |
| Returnability | No |
| Topology | Double Conversion Online |
| Pep Code | ENVPEP2111020EN |
| Width Nominal | 38 cm |
| Curve X-axis Maximum | 100 % |
| Curve X-axis Title | load |
| Curve Y-axis Maximum | 100 % |
| Curve Y-axis Title | efficiency |
| Max Configurable Power (Watts) | 20 kW |
| Maximum Short-circuit Current | 10 kA |
| Package Weight(Lbs) | 165 kg |
| Warranty (In Months) | 12 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Ambient Air Temperature For Operation | 0-40 °C |
| Eu Rohs Directive | Compliant By Exemption |
| Online Thermal Dissipation | 1400 W |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Storage Altitude | 0-15000 m |
| Pep Code | ENVPEP2111020EN |
| Ambient Air Temperature For Storage | -15-40 °C, -15-40 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Environmental Disclosure | ENVPEP2111020EN |
| Ip Degree Of Protection | IP20 |
| Operating Altitude | 0...4921 ft |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 0-95 % non-condensing |
| Storage Relative Humidity | 0-95 % non-condensing |
General Attributes
| Provided Equipment | Dust filter, installation manual, Start-Up Service |
|---|---|
| Range Of Product | Easy UPS 3S |
| Product Or Component Type | uninterruptible power supply (UPS) |
|---|
Output Attributes
| Bypass Type | Built-in Static Bypass |
|---|---|
| Output Voltage | 208 V AC 3 phase |
| Other Output Voltages | 220 V |
|---|
Contractual Warranty Attributes
| Warranty Period | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
Input Attributes
| Input Frequency | 40 - 70 Hz |
|---|---|
| Other Input Voltages | 220 V |
| Main Input Voltage | 208 V AC 3 phase |
|---|
Batteries & Runtime Attributes
| Battery Voltage | +/- 120 V, +/- 120 V |
|---|---|
| Battery Type | internal modular battery |
| Battery Size | lead-acid internal |
|---|---|
| End Of Discharge Battery Voltage | +/- 96 V |
Overview Attributes
| Presentation | High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service. |
|---|
