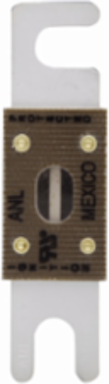

Bussmann ANL-350 ANL Circuit Limiter 235A, 6 kAIC at 32 Vac, Blade End x Blade End, Stud
- MPN: ANL-350
- UPC: 051712706209
- PPN: BUS-ANL-350
CAD
$50.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ANL Circuit Limiter 235A, 6 kAIC at 32 Vac, Blade End x Blade End, Stud
Features
- Engineered with a robust 235-amp continuous current rating and optimized for circuits up to 80VDC, this limiter fuse provides heavy-duty circuit protection for demanding electrical loads. It delivers an essential defense mechanism for high-amp battery banks, large inverters, and high-capacity auxiliary power networks by absorbing normal operational surges while remaining primed to isolate structural overcurrents before they damage downstream equipment.
- Built strictly as a fast-acting, non-time-delay circuit limiter, this unit provides near-instantaneous isolation during catastrophic short-circuits with an interrupting capacity of 2,700A at 80VDC. Compliant with the rigorous SAE J1171 marine ignition-protected standard, it safely confines any internal arcing during a blowout event, making it safe for use in engine compartments, fuel tank areas, and enclosed marine or mobile environments where combustible vapors may be present.
- Designed with an integrated, heat-resistant clear element window right in the center of the link housing, this fuse enables immediate visual troubleshooting without requiring a digital multimeter test. Maintenance technicians or fleet operators can identify an open-fuse condition at a glance, minimizing diagnostic downtime and streamlining the swap-out process during critical field failures.
Documentation & Downloads
Specifications
Additional
- Amperage
- 235 A
- Interrupt Rating
- 6 kAIC at 32 Vac, 2.7 kAIC at 80 Vdc
- Mounting Method
- Stud
- Product Height
- 1.62 in
- Product Weight
- 0.3 lb
- Special Features
- Small footprint
Voltage32 Vac, 80 Vdc
ConnectionBlade end x blade end
Product Length3.38 in
Product Width0.95 in
Fuse IndicatorNon-indicating
