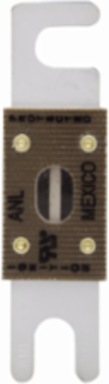

Bussmann ANL-600 Circuit Limiter, 600A, 6 kAIC at 32 Vac, Blade End x Blade End, Stud
- MPN: ANL-600
- UPC: 051712706056
- PPN: BUS-ANL-600
CAD
$107.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Circuit Limiter, 600A, 6 kAIC at 32 Vac, Blade End x Blade End, Stud
Features
- Engineered specifically for high-capacity power distribution, this 600 Amp current limiter provides robust circuit protection for heavy DC setups, including large-scale marine inverters, commercial forklifts, and industrial battery management systems. Its massive current-carrying capacity ensures your primary equipment stays safely operational without the risk of nuisance blowing under standard maximum operating loads.
- Designed for versatile deployment, this limiter features dual voltage compatibility, carrying a rating of up to 32V AC and 80V DC to safely isolate faults across different power configurations. With an interrupting rating of 6 kAIC at 32V AC and 2.7 kAIC at 80V DC, it delivers the necessary breaking capacity to halt dangerous overcurrent conditions before they damage expensive downstream system electronics
- Utilizing a non-time-delay design, this low-voltage circuit limiter clears electrical faults almost instantly to prevent catastrophic damage from dead shorts. This immediate response is highly optimized for safeguarding delicate battery-operated systems and industrial material-handling machinery where delayed clearing could cause irreversible component degradation or thermal events.
- Featuring a standard stud-mount design with blade-end connections, this compact 3.38" x 1.62" x 0.95" unit guarantees a secure, high-torque fitment that tolerates constant industrial movement and mechanical vibration. It pairs perfectly with heavy-duty open stud fuse blocks like the Bussmann SFR series or Blue Sea systems, making it a drop-in replacement that eliminates loose connections and arcing hazards.
Documentation & Downloads
Specifications
Additional
- Amperage
- 600 A
- Voltage Rating
- 32 Vac, 80 Vdc
- Mounting Method
- Stud
- Width
- .95 in
- Weight
- 0.3 lb
- Compliance
- RoHS Compliant
Interrupt Rating6 kAIC at 32 Vac, 2.7 kAIC at 80 Vdc
ConnectionBlade end x blade end
Length/Depth3.38 in
Height1.62 in
Fuse IndicatorNon-indicating
