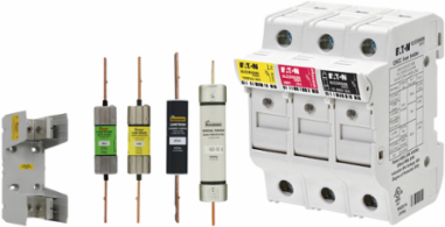

Bussmann ABC-2-R Fast-Acting Fuse 2A, 250 Vac, 125 Vdc, 0.25 Inch Diameter
- MPN: ABC-2-R
- UPC: 051712646208
- PPN: BUS-ABC-2-R
CAD
$1.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton GBB Series Very fast-acting fuse, 25A, 250 Vac, 125 Vdc, R
Features
- This standard small-dimension cartridge fuse measures exactly 1/4 inch in diameter by 1-1/4 inches in length (6.35 mm x 31.75 mm). It drops seamlessly into your existing panel-mount fuse holders, in-line blocks, or PCB clips without requiring any costly equipment modifications or terminal adjustments.
- Engineered with a robust dual voltage rating of 250V AC and 125V DC, this 2-amp fuse delivers reliable overcurrent safety across various power supplies. Unlike standard glass alternatives, it boasts a high interruption rating of 10 kAIC at 125V AC/DC and 100 kAIC at 250V AC, ensuring it suppresses heavy short-circuit electrical faults safely without shattering.
- This fast-acting electronic circuit protector is designed to open rapidly under dangerous overload conditions, reaching a maximum response time of just 120 seconds at 200% of its rated current. By clearing electrical faults almost instantly, it shields vulnerable downstream components and delicate instrumentation from catastrophic thermal damage and voltage spikes.
- The advanced ceramic body construction provides vastly superior thermal resistance and structural integrity compared to traditional glass tubes. Paired with corrosion-resistant nickel-plated brass endcaps, this heavy-duty single-element design maintains a low DC cold resistance of 0.089 Ohms to eliminate unnecessary power drop and withstand harsh, high-vibration industrial environments.
Documentation & Downloads
Specifications
Additional
- Amperage
- 2A
- Interrupt Rating
- 100 AIC at 250 Vac, 10 kAIC at 125 Vac/dc
- Resistance
- Typical DC cold: 0.089 ohms
- Length
- 0.25 in
- Height
- 1.25 in
- Weight
- 0.007 lb
- Material
- Ceramic tube, nickel-plated brass endcaps
Voltage Rating250 Vac, 125 Vdc, 32 Vac (self certified)
Response Time4 hr minimum at 100%, 60 min maximum at 135%, 120 s maximum at 200%
Voltage DropTypical: 0.31 mV
Diameter0.25 in
Width0.25 in
ConnectionFerrule end x ferrule end
TypeElectronic
