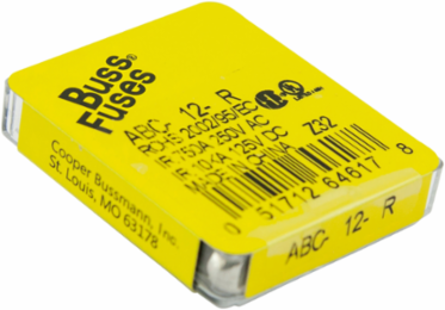

Bussmann ABC-12-R Fast-Acting Fuse 12A, 1.25 Inch Length, Ceramic Tube, 750 AIC Interrupt Rating
- MPN: ABC-12-R
- UPC: 051712646178
- PPN: BUS-ABC-12-R
CAD
$1.42
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Fast-Acting Fuse 12A, 1.25 Inch Length, Ceramic Tube, 750 AIC Interrupt Rating
Features
- Engineered to clear dangerous overcurrents almost instantaneously, the ABC-12-R opens within a maximum of 120 seconds at 200% overload. This hyper-responsive "quick blow" timing architecture protects delicate, downstream electronic components and control circuits from catastrophic thermal damage before it can spread.
- Unlike standard glass variants that can shatter under extreme thermal shock, this heavy-duty ceramic tube allows for a significantly higher interrupting rating and voltage combination. This robust material design safely contains internal arcs, ensuring clean electrical interruption without risking physical damage to your diagnostic instruments or industrial control panels.
- Built to manage highly volatile electrical surges, the fuse boasts a substantial breaking capacity rated at 750A at 250VAC and a massive 10kA at 125VAC/VDC. This industrial-grade suppression profile safeguards sensitive telecom networks, power supplies, and automation hardware against sudden main-line faults.
- Featuring the universal, small-dimension cartridge size of 1/4-inch diameter by 1-1/4-inch length (6.3 x 32mm), this miniature ferrule fuse serves as a drop-in legacy replacement. Its nickel-plated brass endcaps ensure optimal electrical conductivity and long-term corrosion resistance in standard fuse blocks, clips, and surface-mount holders.
Documentation & Downloads
Specifications
Additional
- Amperage Rating
- 12A
- Interrupting Rating
- 750 AIC at 250 Vac, 10 kAIC at 125 Vac/dc
- Length
- 1.25 in
- Height
- 0.25 in
- Weight
- 0.006 lb
- Connection
- Ferrule end X ferrule end
- DC Cold Resistance
- 0.0068 ohms typical
- Type
- Electronic
Voltage Rating250 Vac, 125 Vdc, 32 Vac
Response Time4 hr minimum at 100%, 60 min maximum at 135%, 120 s maximum at 200%
Width0.25 in
Diameter0.25 in
MaterialCeramic tube, nickel-plated brass endcaps
Voltage Drop0.1 V typical at rated current
Fuse IndicatorNon Indicating
Agency ApprovalsUL Listed, UL Recognized, CSA Certified
