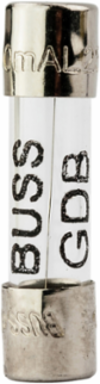

Bussmann GDB-4A Fast-Acting Fuse 4A, 250 Vac, .875 Inch Length, Glass Tube
- MPN: GDB-4A
- UPC: 051712431828
- PPN: BUS-GDB-4A
CAD
$3.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This fast-acting fuse, designed specifically for electronic circuits, ensures reliable protection in your power distribution systems. Crafted with a durable glass tube and equipped with silver-plated end caps, it offers exceptional conductivity and efficiency. With a compact size of 20 mm in height, it features ferrule end connections for seamless integration into various applications. Rated for 4A at 250 Vac and capable of interrupting a fault current up to 40 AIC, this fuse serves as a critical component for safeguarding sensitive electronics while maintaining a maximum voltage drop of just 130 mV.
Features
- Rated for a 4A current and up to 250VAC, this glass tube fuse provides precise overcurrent protection for low-voltage applications. By opening quickly when current exceeds 4A, it prevents catastrophic board-level damage to your instruments, power supplies, and audio equipment, saving you from costly component replacements.
- The GDB-4A is a fast-acting (fast-blow) fuse designed to react instantly to short circuits and power surges.
- Measuring exactly 5mm x 20mm, this metric miniature fuse perfectly matches international standard dimensions. It guarantees a secure, drop-in fit for European-style fuse blocks, inline holders, and PCB clips without requiring any modification to your existing hardware setup.
- Built with a high-visibility glass body and nickel-plated brass endcaps, this cartridge fuse allows for immediate visual troubleshooting. You can instantly confirm a blown fuse with a quick glance rather than testing every line with a multimeter, minimizing diagnostic downtime during maintenance.
- Featuring a breaking capacity/interrupting rating of 40 AIC at 250 VAC, this fuse is engineered to safely clear low-level fault currents. The robust glass design contains the electrical arc internally, preventing physical shattering or thermal damage to surrounding circuitry.
Documentation & Downloads
Specifications
Additional
- Amperage
- 4A
- Interrupt Rating
- 40 AIC at 250 Vac
- Frequency Rating Maximum
- 50 Hz
- Height
- 20 mm
- Material
- Glass tube, nickel-plated end-caps
- Fuse Indicator
- Non Indicating
Voltage250 Vac or less, 32 Vdc
Voltage DropMaximum 130 mV
Diameter5.2
Weight0.83 g
ConnectionFerrule end X ferrule end
