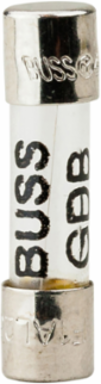

Bussmann GDB-32MA Fast-Acting Fuse 32 mA, 250 Vac, .25 Inch x .75 Inch, Glass Tube
- MPN: GDB-32MA
- UPC: 051712431613
- PPN: BUS-GDB-32MA
CAD
$6.02
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Fast-Acting Fuse 32 mA, 250 Vac, .25 Inch x .75 Inch, Glass Tube
Features
- The Bussmann GDB-32MA is a precision 5 x 20mm glass tube fuse. This is the standard "small-dimension" metric size used globally in laboratory instruments, power supplies, and control circuit protection. Its compact glass body allows for instant visual inspection of the internal fuse element to confirm if it has cleared.
- This fuse is rated for 32mA (0.032 Amps) at 250V AC. This extremely low amperage rating is designed to protect highly sensitive electronic components and micro-circuitry where even a minor overcurrent could cause permanent damage. It acts as a "fast-acting" (F) fuse, meaning it will blow almost instantly upon reaching a fault condition.
- The GDB series has a Low Breaking Capacity (LBC) rating, typically 35 Amps at 250V AC. Because it is a glass fuse, it is designed for use in circuits where the potential "available fault current" is relatively low. For high-energy industrial power applications, a ceramic-bodied fuse with a higher interrupting rating would usually be required.
- The GDB series is built to meet IEC 60127-2 (Sheet 2) standards, making it a "Universal Modular Fuse." This ensures that if you are maintaining European or Asian-made machinery in a Canadian facility, the GDB-32MA will provide the exact performance characteristics and physical fit specified by the original equipment manufacturer.
Documentation & Downloads
Specifications
Additional
- Amperage
- 32 mA (0.032 A)
- Interrupt Rating
- 35 AIC at 250 Vac
- Frequency
- 50 Hz
- Size
- Length 0.75 in., Width 0.25 in., Height 0.25 in.
- Weight
- 0.002 lb
- Material
- Glass tube, silver-plated end-caps
Voltage Rating250 Vac or less, 32 Vdc (self certified)
Voltage DropMaximum 3200 mV
Fuse IndicatorNon Indicating
ConnectionFerrule end x ferrule end
TypeSmall dimension, European (IEC)
ApplicationElectronic circuits
