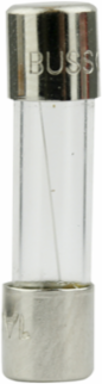

Bussmann GMA-2-R Fast-Acting Fuse, 2A, 250 Vac, 0.25 Inch x 0.75 Inch, Glass Tube
- MPN: GMA-2-R
- UPC: 051712647892
- PPN: BUS-GMA-2-R
CAD
$1.13
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Fast-Acting Fuse, 2A, 250 Vac, 0.25 Inch x 0.75 Inch, Glass Tube
Features
- Designed with a precision-engineered "fast-acting" response time, this fuse is built to open almost instantly when it detects an overcurrent spike. This rapid clearing of the circuit prevents high-voltage surges from reaching delicate PCBs (Printed Circuit Boards) and sensitive electronic components in power supplies, lab equipment, and specialized instruments.
- This 5mm x 20mm (approximately 0.2" x 0.8") small-dimension cartridge fuse is the global standard for modern consumer and industrial electronics. Whether you are repairing a 3D printer, a high-end audio amplifier, or an industrial control panel, this drop-in replacement ensures a perfect fit into standard ferrule-style fuse holders and clips.
- Unlike cheaper alternatives that may corrode over time, these endcaps feature high-quality nickel plating over brass. This construction provides superior electrical conductivity and oxidation resistance, ensuring that your 2-Amp connection remains stable and heat-free even during continuous operation in humid or fluctuating environments.
- Rated for up to 250V AC, this versatile fuse is fully compatible with standard residential 120V circuits and higher-voltage 240V industrial applications. Its 100A interrupting rating at 250V ensures it can safely break a fault current without shattering the glass tube, protecting your equipment and the surrounding enclosure from damage.
Documentation & Downloads
Specifications
Additional
- Voltage Rating
- 250 Vac, 32 Vdc
- Interrupt Rating
- 100A at 250 Vac, 10,000A at 125 Vac
- Length
- 0.75 in
- Height
- 0.25 in
- Connection
- Ferrule end x ferrule end
- Type
- Electronic - small dimension
- Compliance
- CE Marked, RoHS Compliant
Amperage Rating2A
Response Time60 min at 135%, 2 min at 200%
Width0.25 in
Weight0.002 lb
MaterialGlass tube, nickel-plated brass endcaps
Fuse IndicatorNon Indicating
