Eaton Bussmann series FCF fuse, 20 A, 60 Hz, 50 Hz, 1 , CF, Black, Non-indicating, Electroless tin plated copper alloy terminal, Blade end,Class CF, 4 min at 200%, 300 kAIC at 600 V,50 kAIC at 600 Vdc, Glass filled PES, 600 V, 600 Vdc

Documentation & Downloads

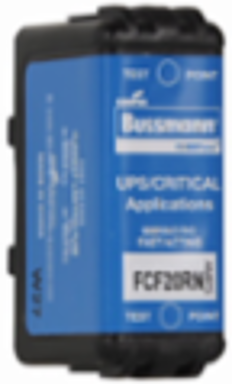

Bussmann FCF20RN Eaton Bussmann series FCF fuse, 20 A, 60 Hz, 50 Hz, 1 , CF, Black, Non-indicating, Electroless tin plated copper alloy terminal, Blade end,Class CF, 4 min at 200%, 300 kAIC at 600 V,50 kAIC at 600 Vdc, Glass filled PES, 600 V, 600 Vdc

MPN: FCF20RN
UPC: 051712362467
PPN: BUS-FCF20RN

CAD

$43.13

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Eaton Bussmann series FCF fuse, 20 A, 60 Hz, 50 Hz, 1 , CF, Black, Non-indicating, Electroless tin plated copper alloy terminal, Blade end,Class CF, 4 min at 200%, 300 kAIC at 600 V,50 kAIC at 600 Vdc, Glass filled PES, 600 V, 600 Vdc

Documentation & Downloads

Specifications

General Information

Class: Class CF

Fuse indicator: Non-indicating

Used with: TCFH30N, CCP2-3-30CF

ConnectionBlade end

Special featuresFinger safe

Electrical Rating

Amperage Rating: 20 A

Frequency rating - min: 50 Hz

Response time: 4 min at 200%

Frequency rating - max60 Hz

Interrupt rating300 kAIC at 600 Vac

Voltage rating600 Vac, 600 Vdc

Physical Details

Color: Black

Material: Glass filled PES

Operating Temperature: -40° to 80°C

Terminal material: Electroless tin plated copper alloy terminal

Fuse typeClass CF

Number of elements1

Packaging typeStandard

General

UPC: 051712362467

Product Height: 1.75 in

Product Weight: .08 lb

Compliances: CE Marked

Product Length/Depth1.88 in

Product Width.75 in

WarrantyNot Applicable

CertificationsUL Listed
