Eaton Bussmann series FCF fuse CUBEFuse, power loss 3.48 w, Critical/UPS, 15 A, 60 Hz, 50 Hz, 1 , CF, Black, Electroless tin plated copper alloy terminal, Blade end, 4 min at 200%, 50 kAIC at 600 Vdc,300 kAIC at 600 V, Glass filled PES

Documentation & Downloads

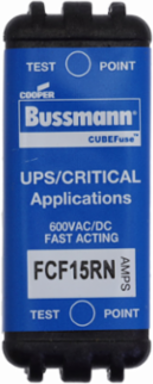

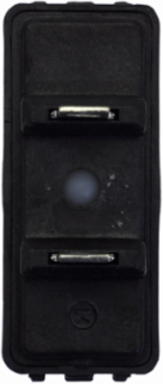

Bussmann FCF15RN Eaton Bussmann series FCF fuse CUBEFuse, power loss 3.48 w, Critical/UPS, 15 A, 60 Hz, 50 Hz, 1 , CF, Black, Electroless tin plated copper alloy terminal, Blade end, 4 min at 200%, 50 kAIC at 600 Vdc,300 kAIC at 600 V, Glass filled PES

MPN: FCF15RN
UPC: 051712362450
PPN: BUS-FCF15RN

CAD

$43.13

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Eaton Bussmann series FCF fuse CUBEFuse, power loss 3.48 w, Critical/UPS, 15 A, 60 Hz, 50 Hz, 1 , CF, Black, Electroless tin plated copper alloy terminal, Blade end, 4 min at 200%, 50 kAIC at 600 Vdc,300 kAIC at 600 V, Glass filled PES

Documentation & Downloads

Specifications

Electrical Rating

Amperage Rating: 15 A

Frequency rating - min: 50 Hz

Response time: 4 min at 200%

Frequency rating - max60 Hz

Interrupt rating300 kAIC at 600 Vac

Voltage rating600 Vac, 600 Vdc

General

UPC: 051712362450

Product Height: 1.75 in

Product Weight: .08 lb

Compliances: CE Marked

Product Length/Depth1.88 in

Product Width.75 in

WarrantyNot Applicable

CertificationsUL Listed

Physical Details

Color: Black

Material: Glass filled PES

Operating Temperature: -40° to 80°C

Terminal material: Electroless tin plated copper alloy terminal

Fuse typeClass CF

Number of elements1

Packaging typeStandard

General Information

Class: Class CF

Fuse indicator: Non-indicating

Used with: TCFH30N, CCP2-3-30CF

ConnectionBlade end

Special featuresFinger safe, power loss 3.48 w
