Bussman

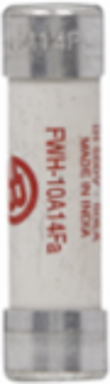

Bussman FWH-10A14F High Speed Fuse 10A, 1000 Vac, 800 Vdc, 200 kAIC, Ferrule end X Ferrule end

High Speed Fuse 10A, 1000 Vac, 800 Vdc, 200 kAIC, Ferrule end X Ferrule end
High Speed Fuse 10A, 1000 Vac, 800 Vdc, 200 kAIC, Ferrule end X Ferrule end
  • MPN: FWH-10A14F
  • UPC: 051712370806
  • PPN: BUS-FWH-10A14F

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$37.48/ EA

Specifications

General

UPC
051712370806
Product Length/Depth
51 MM
Product Width
14 MM
Warranty
Not Applicable
Certifications
UL Recognized
EAN5027590499538
Product Height14 MM
Product Weight21.6 G
CompliancesCE Marked

Specifications

Fuse Indicator
Non Indicating
Construction Size
14 x 51 mm
Connection
Ferrule end X ferrule end
Amperage Rating
10A
Utilization category
aR (accompanied semiconductor protection)
Type
High speed fuse
Breaking Capacity
200 A
With Striker
No
Pre Arc (I2T)
3.6
Application
protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Voltage Type
AC/DC
Interrupt Rating200 kAIC Vac, 50 kAIC at 500 Vdc
Clearing (I2T)Clearing at 500V: 13
Release CharacteristicOther
Frequency Rating Maximum62 HZ
Watt Losses4W
Fuse Shapecylindrical
Amperage Rating Numeric10 A
Frequency Rating Minimum45 HZ
Voltage Rating1000 Vac, 800 Vdc
Voltage Rating Numeric500 V
Packaging TypeStandard
