Bussmann

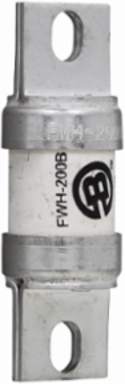

Bussmann FWH-175B Eaton Bussmann series FWH high speed fuse, 1000 Vac, 800 Vdc, 175A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud

Eaton Bussmann series FWH high speed fuse, 1000 Vac, 800 Vdc, 175A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud
  • MPN: FWH-175B
  • UPC: 051712795852
  • PPN: BUS-FWH-175B

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$110.37/ EA

Description

Eaton Bussmann series FWH high speed fuse, 1000 Vac, 800 Vdc, 175A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud

Specifications

Specifications

Fuse indicator
None
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Mounting method
Stud
Utilization category
Other
Type
High speed fuse
Fuse shape
Cylindrical, center bolted tags
Pre arc (I2T)
1450
Application
DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Packaging type
Standard
Interrupt rating200 kAIC at 1000 Vac
Clearing (I2T)6200
ConnectionBlade end x blade end
Amperage Rating175 A
Watt losses35 W
Rated switching capacity200 A
Breaking capacity200 A
Voltage rating500 V
Voltage typeAC/DC

General

UPC
051712795852
Product Length/Depth
30 mm
Product Width
96 mm
Warranty
Not Applicable
Certifications
UL Recognized
EAN5027590020879
Product Height30 mm
Product Weight150 g
CompliancesCE Marked
