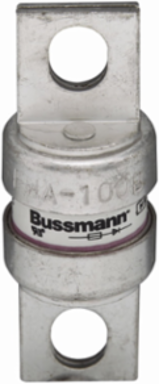

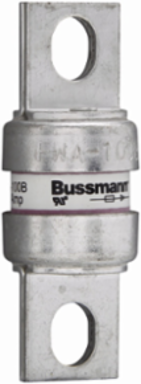

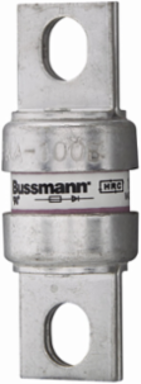

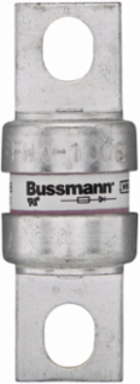

Bussmann FWA-80B Eaton Bussmann series FWA high speed fuse, 500V, 80A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud

Eaton Bussmann series FWA high speed fuse, 500V, 80A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud
Eaton Bussmann series FWA high speed fuse, 500V, 80A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud
Eaton Bussmann series FWA high speed fuse, 500V, 80A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud
Eaton Bussmann series FWA high speed fuse, 500V, 80A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud
  • MPN: FWA-80B
  • UPC: 051712577892
  • PPN: BUS-FWA-80B

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$78.05/ EA

Description

Eaton Bussmann series FWA high speed fuse, 500V, 80A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud

Specifications

Specifications

Fuse Indicator
None
Construction Size
Other
Connection
Blade end X blade end
Amperage Rating
80A
Watt Losses
7.7
Type
High speed fuse
Fuse Shape
cylindrical with centre-bolted tags
Pre Arc (I2T)
670
Application
DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Voltage Type
AC/DC
Interrupt Rating200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A)
Clearing (I2T)6000
Insulated Metal Gripping Lugs (IMGL)No
Utilization categoryOther
MountingStud
Rated switching capacity100 A
Amperage Rating Numeric80 A
Voltage Rating500V
Voltage Rating Numeric150 V
Packaging TypeStandard

General

UPC
051712577892
Product Length/Depth
67 MM
Product Width
25.4 MM
Warranty
Not Applicable
Certifications
UL Recognized
EAN5027590020572
Product Height25.4 MM
Product Weight82 G
CompliancesCE Marked
