Bussmann

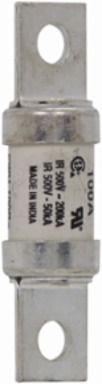

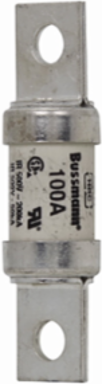

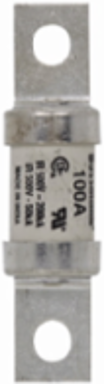

Bussmann FWH-80B Eaton Bussmann series FWH high speed fuse, 700 Vac (UL), 690 Vac (IEC), 800 Vdc (5-50A), 80A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud

Eaton Bussmann series FWH high speed fuse, 700 Vac (UL), 690 Vac (IEC), 800 Vdc (5-50A), 80A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud
Eaton Bussmann series FWH high speed fuse, 700 Vac (UL), 690 Vac (IEC), 800 Vdc (5-50A), 80A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud
Eaton Bussmann series FWH high speed fuse, 700 Vac (UL), 690 Vac (IEC), 800 Vdc (5-50A), 80A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud
  • MPN: FWH-80B
  • UPC: 051712795807
  • PPN: BUS-FWH-80B

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$130.83/ EA

Description

Eaton Bussmann series FWH high speed fuse, 700 Vac (UL), 690 Vac (IEC), 800 Vdc (5-50A), 80A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud

Specifications

Specifications

Fuse indicator
None
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Mounting method
Stud
Utilization category
Other
Type
High speed fuse
Fuse shape
Cylindrical, center bolted tags
Pre arc (I2T)
305
Application
DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Packaging type
Standard
Interrupt rating200 kAIC at 1000 Vac
Clearing (I2T)1400
ConnectionBlade end x blade end
Amperage Rating80 A
Watt losses12.7 W
Rated switching capacity200 A
Breaking capacity200 A
Voltage rating500 V
Voltage typeAC/DC

General

UPC
051712795807
Product Length/Depth
97 mm
Product Width
25 mm
Warranty
Not Applicable
Certifications
CSA Certified
EAN5027590021081
Product Height25 mm
Product Weight95 g
CompliancesCE Marked
