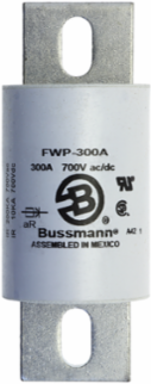

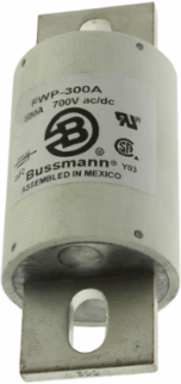

Bussmann FWP-300A High Speed Fuse 300A RMS, 2.4 Inch Length, 700 Vac/Vdc, 2.9 Inch Width
- MPN: FWP-300A
- UPC: 051712150415
- PPN: BUS-FWP-300A
CAD
$320.40
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 300A RMS, 2.4 Inch Length, 700 Vac/Vdc, 2.9 Inch Width
Documentation & Downloads
Specifications
Key Specifications
| Height | 5.4 IN |
|---|---|
| Width | 2.9 IN |
| Type | North American style |
| Voltage Rating | 700 Vac, 700 Vdc |
| Interrupt Rating | 200 kAIC Vac, 50 kAIC at 700 Vdc |
| Mounting | Stud |
| Clearing (I2T) | Clearing at 700V: 71200 |
| Pre Arc (I2T) | 17600 |
| Length | 2.4 IN |
|---|---|
| Weight | 1.7 LB |
| Application | DC common bus, DC drives, power converters/rectifiers, reduced voltage starters |
| Amperage Rating | 300A RMS |
| Connection | Blade end X blade end |
| Packaging Type | Standard |
| Fuse Indicator | Non Indicating |
| Watt Losses | 58W |
