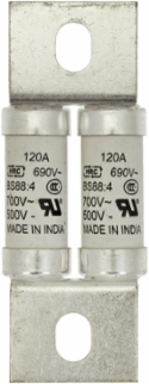

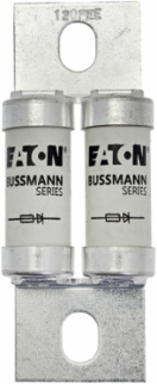

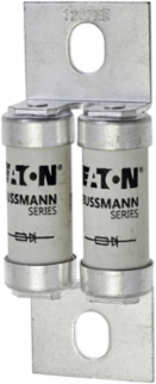

Bussmann 120FEE High-Speed British Standard Fuse 120A, 200 kAIC Interrupt Rating, 750 Vdc
- MPN: 120FEE
- UPC: 051712830539
- PPN: BUS-120FEE
CAD
$334.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High-Speed British Standard Fuse 120A, 200 kAIC Interrupt Rating, 750 Vdc
Specifications
Key Specifications
| Height | 20 MM |
|---|---|
| Width | 36 MM |
| Type | Fuse |
| Voltage Rating | 750 Vdc |
| Amperage Rating | 120A |
| Interrupt Rating | 200 kAIC |
| Construction Size | Other |
| Packaging Type | Standard |
| Fuse Shape | offset bolted tags (dual barrel) |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Voltage Type | AC/DC |
| Rated switching capacity | 200 KA |
| Length | 94 MM |
|---|---|
| Weight | 91.6 G |
| Application | protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Voltage Rating Numeric | 690 V |
| Amperage Rating Numeric | 120 A |
| Connection | Blade end X blade end |
| Mounting | Stud |
| Clearing (I2T) | Clearing at 415V: 1900 , Clearing at 660V: 3100 |
| Fuse Indicator | None |
| Pre Arc (I2T) | 540 |
| Watt Losses | 32W |
