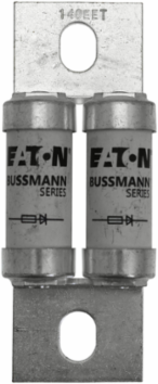

Bussmann 140EET High Speed Fuse 140A 690V AC/DC, 94MM Length, 36MM Width, 200KA Interrupt Rating
- MPN: 140EET
- UPC: 051712830935
- PPN: BUS-140EET
CAD
$391.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 140A 690V AC/DC, 94MM Length, 36MM Width, 200KA Interrupt Rating
Documentation & Downloads
Specifications
Key Specifications
| Height | 20 MM |
|---|---|
| Width | 36 MM |
| Type | Fuse |
| Voltage Rating Numeric | 690 V |
| Amperage Rating Numeric | 140 A |
| Connection | Blade end X blade end |
| Mounting | Stud |
| Clearing (I2T) | Clearing at 415V: 7000 , Clearing at 660V: 12000 |
| Fuse Indicator | None |
| Pre Arc (I2T) | 1050 |
| Watt Losses | 35W |
| Length | 94 MM |
|---|---|
| Weight | 91.6 G |
| Application | protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Amperage Rating | 140A |
| Interrupt Rating | 200 kAIC |
| Construction Size | Other |
| Packaging Type | Standard |
| Fuse Shape | offset bolted tags |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Voltage Type | AC/DC |
| Rated switching capacity | 200 KA |
