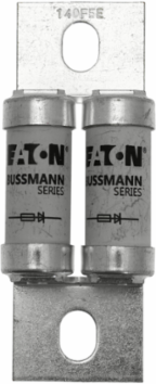

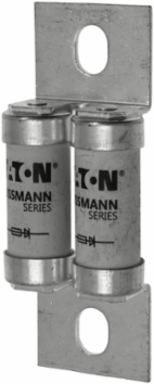

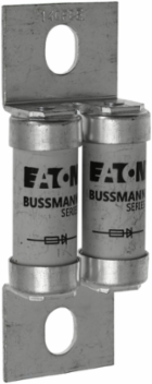

Bussmann 140FEE High Speed Fuse 140A 690V 200kAIC 36MM Width
- MPN: 140FEE
- UPC: 051712836593
- PPN: BUS-140FEE
CAD
$347.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
High Speed Fuse 140A 690V 200kAIC 36MM Width
Documentation & Downloads
Specifications
Key Specifications
- Height
- 20 MM
- Width
- 36 MM
- Type
- Fuse
- Voltage Rating Numeric
- 690 V
- Amperage Rating Numeric
- 140 A
- Connection
- Blade end X blade end
- Mounting
- Stud
- Clearing (I2T)
- Clearing at 415V: 2500 , Clearing at 660V: 3800
- Fuse Indicator
- None
- Pre Arc (I2T)
- 850
- Watt Losses
- 36W
Length94 MM
Weight91.6 G
Applicationprotection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Amperage Rating140A
Interrupt Rating200 kAIC
Construction SizeOther
Packaging TypeStandard
Fuse Shapeoffset bolted tags (dual barrel)
Insulated Metal Gripping Lugs (IMGL)No
Voltage TypeAC/DC
Rated switching capacity200 KA
