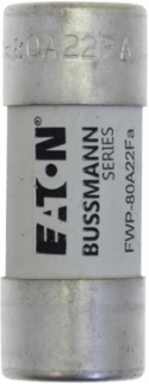

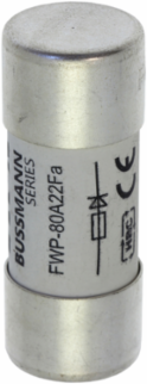

Bussmann FWP-80A22F High Speed Cylindrical Fuse 80A 22mm x 58mm AC/DC
- MPN: FWP-80A22F
- UPC: 051712370875
- PPN: BUS-FWP-80A22F
CAD
$87.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton Bussmann series FWP high speedfuse, 700 Vac, 700 Vdc (UL), 80A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end,Class aR, White, Ceramic
Features
- Engineered for high-power demanding environments, this 80-amp, 700V AC/DC ferrule fuse delivers critical overcurrent protection for sensitive power electronics. It utilizes fast-acting clearing characteristics to isolate faults rapidly, protecting costly downstream components like variable speed drives, inverters, and rectifiers from catastrophic thermal damage.
- Measuring exactly 22mm in diameter and 58mm in length, this industry-standard size 22x58mm cylindrical ferrule fits securely into standard finger-safe fuse blocks and disconnect switches. The precise physical dimensions guarantee a low-resistance contact connection, preventing overheating localized to the clip and eliminating intermittent power delivery issues.
- Engineered with an optimized compact ceramic body, it limits power dissipation to a low 15W loss at full rated current. This minimal energy wastage preserves a cooler internal climate for your electrical enclosures, alleviating thermal stress on nearby sensitive electronics and preventing the premature component wear caused by localized overheating.
- Fully compliant with stringent global regulatory frameworks, this fuse is UL Recognized, CSA Certified, CE Marked, and RoHS Compliant.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 14 MM
- Width
- 14 MM
- Type
- Fuse
- Voltage Rating
- 700 Vac, 700 Vdc (UL)
- Amperage Rating
- 80A
- Interrupt Rating
- 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc
- Color
- White
- Construction Size
- 22 x 58 mm
- Packaging Type
- Standard
- Quantity
- 10
- Breaking Capacity
- 200 A
- Frequency Rating Maximum
- 62 HZ
- Fuse Shape
- cylindrical
- Minimum Melting
- 600 I2t (A2 Sec)
- Release Characteristic
- Other
- Voltage Type
- AC/DC
- With Striker
- No
Length58 MM
Weight61.3 G
Applicationprotection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Voltage Rating Numeric700 V
Amperage Rating Numeric80 A
ClassClass aR
ConnectionFerrule end X ferrule end
Material TypeCeramic
Diameter22 MM
Used WithFinger safe holders/blocks and striker
Clearing (I2T)7800
Frequency Rating Minimum45 HZ
Fuse IndicatorNon Indicating
Pre Arc (I2T)550
Utilization categoryaR (accompanied semiconductor protection)
Watt Losses15
