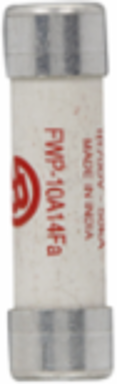

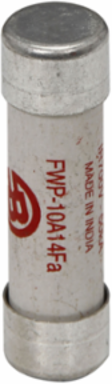

Bussman FWP-32A14F High Speed Cylindrical Fuse 32A, 700V, 14 x 51 mm, Ceramic
Bussman FWP-32A14F High Speed Cylindrical Fuse 32A, 700V, 14 x 51 mm, Ceramic
- MPN: FWP-32A14F
- UPC: 051712796491
- PPN: BUS-FWP-32A14F
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$40.32/ EA
Specifications
Specifications
- Height
- 14 MM
- Width
- 14 MM
- Type
- Fuse
- Voltage Rating
- 700 Vac (IEC), 800 Vdc (UL), 690 Vac (IEC)
- Amperage Rating
- 32A
- Interrupt Rating
- 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc
- Color
- White
- Construction Size
- 14 x 51 mm
- Packaging Type
- Standard
- Quantity
- 10
- Breaking Capacity
- 200 A
- Frequency Rating Maximum
- 62 HZ
- Fuse Shape
- cylindrical
- Minimum Melting
- 68I2t (A2 Sec)
- Release Characteristic
- Other
- Voltage Type
- AC/DC
- With Striker
- No
Length51 MM
Weight21.2 G
Applicationprotection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Voltage Rating Numeric700 V
Amperage Rating Numeric32 A
ClassClass aR
ConnectionFerrule end X ferrule end
Material TypeCeramic
Diameter14 MM
Used WithFinger safe holders/blocks and striker
Clearing (I2T)600
Frequency Rating Minimum45 HZ
Fuse IndicatorNon Indicating
Pre Arc (I2T)68
Utilization categoryaR (accompanied semiconductor protection)
Watt Losses8
