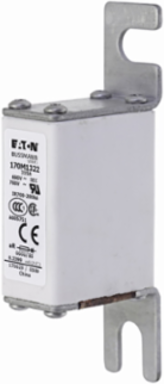

Bussmann 170M1322 High Speed Square Body Fuse 690V 315A 200 kAIC Class aR DIN 43 620
- MPN: 170M1322
- UPC: 051712216586
- PPN: BUS-170M1322
CAD
$271.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 690V 315A 200 kAIC Class aR DIN 43 620
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | None |
|---|---|
| Construction size | Other |
| Insulated metal gripping lugs (IMGL) | No |
| Mounting method | DIN 43 620 |
| Utilization category | aR (accompanied semiconductor protection) |
| Type | Fuse |
| Class | Class aR |
| Voltage rating | 690 V |
| Voltage type | AC |
| Interrupt rating | 200 kAIC |
|---|---|
| Clearing (I2T) | 80500 at 660 V |
| Connection | Blade end x blade end |
| Amperage Rating | 315 A |
| Watt losses | 52 W |
| Fuse shape | Square body, slotted offset bolted tags |
| Pre arc (I2T) | 12000 |
| Application | semiconductor protection |
| Packaging type | Standard |
General
| UPC | 051712216586 |
|---|---|
| Product Length/Depth | 21 mm |
| Product Width | 100 mm |
| Warranty | Not Applicable |
| Certifications | IEC Rated |
| EAN | 5027590440776 |
|---|---|
| Product Height | 40 mm |
| Product Weight | 146.2 g |
| Compliances | CE Marked |
