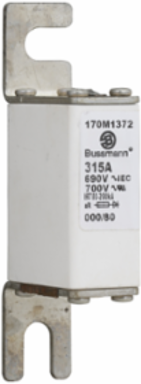

Bussmann 170M1372 High Speed Square Body Fuse 315A 690V AC 100 MM Length
- MPN: 170M1372
- UPC: 051712216739
- PPN: BUS-170M1372
CAD
$244.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 315A 690V AC 100 MM Length
Specifications
Key Specifications
| Height | 40 MM |
|---|---|
| Width | 21 MM |
| Type | Fuse |
| Voltage Rating | 700V (UL), 690V (IEC) |
| Amperage Rating | 315A |
| Interrupt Rating | 200 kAIC |
| Connection | Blade end X blade end |
| Mounting | DIN 43 620 |
| Clearing (I2T) | Clearing at 660V: 80500 |
| Fuse Indicator | Top fuse status indicator |
| Pre Arc (I2T) | 12000 |
| Voltage Type | AC |
| Length | 100 MM |
|---|---|
| Weight | 148 G |
| Application | semiconductor protection |
| Voltage Rating Numeric | 690 V |
| Amperage Rating Numeric | 315 A |
| Class | Class aR |
| Construction Size | Other |
| Packaging Type | Standard |
| Fuse Shape | square body with offset bolted tags (slotted) |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Utilization category | aR (accompanied semiconductor protection) |
| Watt Losses | 52W |
