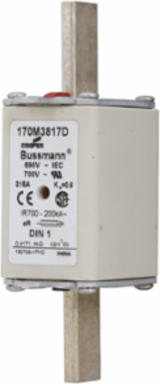

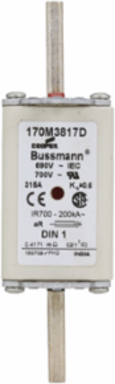

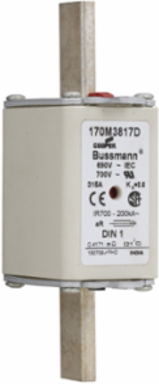

Bussmann 170M3817D High Speed Square Body Fuse 315A 690V Industrial Application
- MPN: 170M3817D
- UPC: 051712334068
- PPN: BUS-170M3817D
CAD
$515.95
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 315A 690V Industrial Application
Documentation & Downloads
Specifications
Key Specifications
| Height | 58 MM |
|---|---|
| Width | 45 MM |
| Type | Fuse |
| Voltage Rating | 700V (UL), 690V (IEC) |
| Amperage Rating | 315A |
| Interrupt Rating | 200 kAIC |
| Connection | Din 43-620 blade end X Din 43-620 blade end |
| Packaging Type | Standard |
| Fuse Shape | square body with knife blade contacts |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Utilization category | aR (accompanied semiconductor protection) |
| Watt Losses | 20W |
| Length | 135 MM |
|---|---|
| Weight | 423.5 G |
| Application | industrial |
| Voltage Rating Numeric | 690 V |
| Amperage Rating Numeric | 315 A |
| Class | Class aR |
| Construction Size | Other |
| Clearing (I2T) | Clearing at 660V: 52000 |
| Fuse Indicator | Combination fuse status indicator |
| Pre Arc (I2T) | 7300 |
| Voltage Type | AC |
