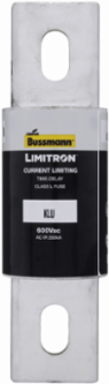

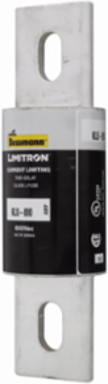

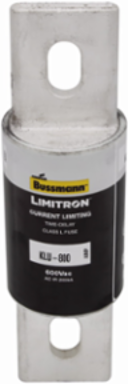

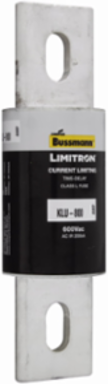

Bussmann KLU-800 LIMITRON Fast-acting Fuse 800 A, Class L, 600 V, 200 kAIC, 5 sec at 500%
- MPN: KLU-800
- UPC: 051712135054
- PPN: BUS-KLU-800
CAD
$740.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LIMITRON Fast-acting Fuse 800 A, Class L, 600 V, 200 kAIC, 5 sec at 500%
Features
- With an exceptional 200 kAIC interrupting rating at 600 Vac, this Class L fuse delivers robust, reliable circuit protection at virtually any location within your electrical distribution system. It provides an economical yet highly effective safeguard for high-fault current circuits, shielding downstream infrastructure from catastrophic failure.
- Engineered with a minimum 5-second time-delay at 500% of its rated current, this Limitron fuse effortlessly absorbs temporary, non-damaging inrush currents. This eliminates the headaches and costly downtime associated with nuisance tripping, making it ideal for large machinery disconnects, industrial motors, and major feed transformers.
- Featuring standard Class L cartridge dimensions of 2.50 inches in diameter by 8.63 inches in length, this 800 Amp fuse is designed for seamless integration. The heavy-duty bolted blade ends ensure a secure, high-conductivity mechanical connection in large distribution switchboards and power panels without the risk of arcing or loosening under thermal cycling.
- The fast-acting, current-limiting design limits peak let-through current to a fraction of the available short-circuit energy. By cutting off faults before they can fully develop, it drastically reduces thermal and magnetic stress on your power panelboards and switchboards, extending the operational life of your infrastructure.
Documentation & Downloads
Specifications
Additional
- Amperage
- 800 A
- Interrupt rating
- 200 kAIC at 600 Vac
- Class
- Class L
- Height
- 2.5 in
- Weight
- 3.75 lb
- Fuse indicator
- Non-indicating
- Compliance
- CE Marked, RoHS Compliant
Voltage600 V
Response time5 sec at 500%
Length/Depth8.63 in
Width2.5 in
ConnectionBolted blade end x bolted blade end
Mounting methodBolt
