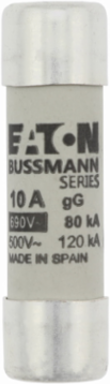

Bussmann C14G10 Eaton Bussmann series low voltage 14 x 51 mm cylindrical/ferrule fuse, rated at 690 Volts AC, 10 Amps, 80 kA Breaking capacity, class gG/gL, without indicator, compatible with a CH14 Modular fuse holder
Bussmann C14G10 Eaton Bussmann series low voltage 14 x 51 mm cylindrical/ferrule fuse, rated at 690 Volts AC, 10 Amps, 80 kA Breaking capacity, class gG/gL, without indicator, compatible with a CH14 Modular fuse holder
- MPN: C14G10
- UPC: 051712754354
- PPN: BUS-C14G10
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$43.82/ EA
Description
Eaton Bussmann series low voltage 14 x 51 mm cylindrical/ferrule fuse, rated at 690 Volts AC, 10 Amps, 80 kA Breaking capacity, class gG/gL, without indicator, compatible with a CH14 Modular fuse holder
Specifications
Specifications
- Fuse indicator
- Non-indicating
- Quantity
- 10
- Mounting method
- 14 x 51 mm CH Modular fuse holder
- Amperage Rating
- 10 A
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type
- fuse
- Breaking capacity
- 80 kA
- Frequency rating - min
- 45 Hz
- Voltage rating
- 690 V
- Voltage type
- AC
ConnectionFerrule end x ferrule end
MaterialCeramic body
Release characteristicOther
Frequency rating - max62 Hz
Fuse typeCylindrical
Fuse shapeCylindrical
Fuse size14 x 51 mm
ClassClass C gL/gG
Applicationfor industrial applications | for general purpose use
Packaging typeStandard
General
- UPC
- 051712754354
- Product Length/Depth
- 51 mm
- Product Width
- 14.3 mm
- Compliances
- RoHS Compliant
EAN5027590493789
Product Height14.3 mm
Product Weight20.6 g
CertificationsIEC 60269
