Bussmann

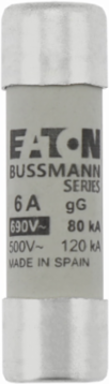

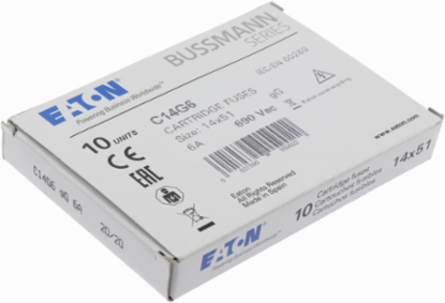

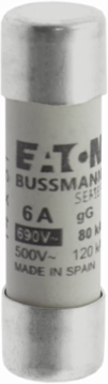

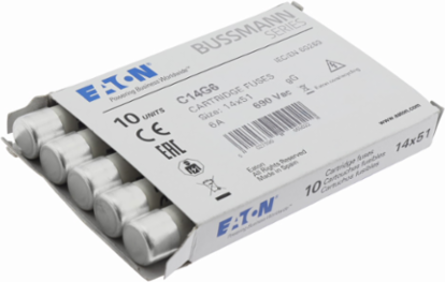

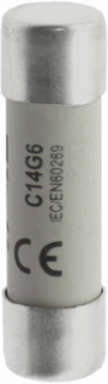

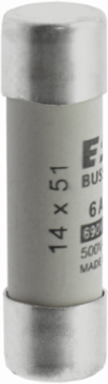

Bussmann C14G6 14 x 51 mm Cylindrical Fuse, 6 A, 690 V, 80 kA Breaking Capacity

14 x 51 mm Cylindrical Fuse, 6 A, 690 V, 80 kA Breaking Capacity
14 x 51 mm Cylindrical Fuse, 6 A, 690 V, 80 kA Breaking Capacity
14 x 51 mm Cylindrical Fuse, 6 A, 690 V, 80 kA Breaking Capacity
14 x 51 mm Cylindrical Fuse, 6 A, 690 V, 80 kA Breaking Capacity
14 x 51 mm Cylindrical Fuse, 6 A, 690 V, 80 kA Breaking Capacity
14 x 51 mm Cylindrical Fuse, 6 A, 690 V, 80 kA Breaking Capacity
  • MPN: C14G6
  • UPC: 051712754347
  • PPN: BUS-C14G6

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$43.02/ EA

Description

14 x 51 mm Cylindrical Fuse, 6 A, 690 V, 80 kA Breaking Capacity

Specifications

Specifications

Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Material
Ceramic body
Release characteristic
Other
Frequency rating - max
62 Hz
Fuse type
Cylindrical
Fuse shape
Cylindrical
Fuse size
14 x 51 mm
Class
Class C gL/gG
Application
for industrial applications | for general purpose use
Packaging type
Standard
Construction size14 mm x 51 mm
Quantity10
Mounting method14 x 51 mm CH Modular fuse holder
Amperage Rating6 A
Utilization categorygL/gG (cable protection/equipment protection)
Typefuse
Breaking capacity80 kA
Frequency rating - min45 Hz
Voltage rating690 V
Voltage typeAC

General

UPC
051712754347
Product Length/Depth
51 mm
Product Width
14.3 mm
Warranty
1 year limited
Certifications
IEC 60269
EAN5027590494151
Product Height14.3 mm
Product Weight20.2 g
CompliancesContact factory
