Bussman

Bussman C22M125 Low Voltage Cylindrical Fuse 22 x 58 mm, 400 V AC, 125 A, 120 kA Breaking Capacity

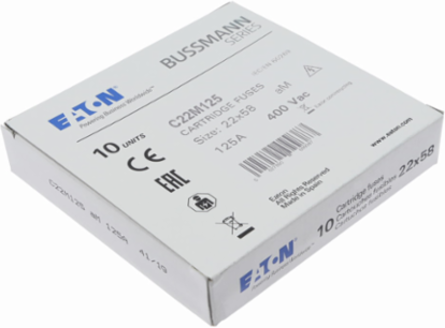

Low Voltage Cylindrical Fuse 22 x 58 mm, 400 V AC, 125 A, 120 kA Breaking Capacity

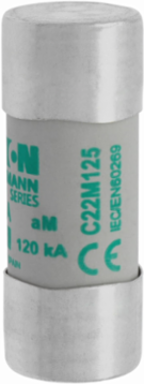

Low Voltage Cylindrical Fuse 22 x 58 mm, 400 V AC, 125 A, 120 kA Breaking Capacity

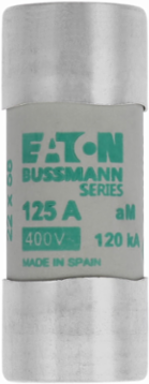

Low Voltage Cylindrical Fuse 22 x 58 mm, 400 V AC, 125 A, 120 kA Breaking Capacity

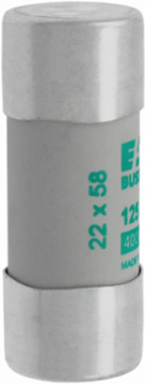

Low Voltage Cylindrical Fuse 22 x 58 mm, 400 V AC, 125 A, 120 kA Breaking Capacity

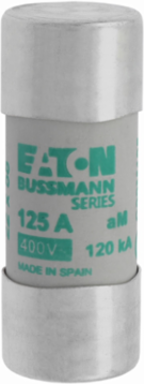

Low Voltage Cylindrical Fuse 22 x 58 mm, 400 V AC, 125 A, 120 kA Breaking Capacity

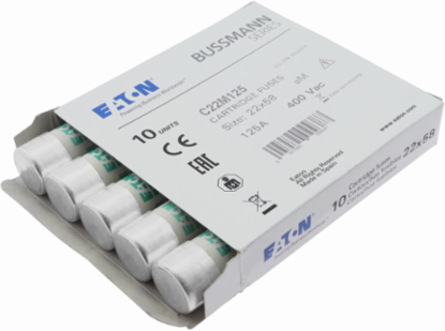

Low Voltage Cylindrical Fuse 22 x 58 mm, 400 V AC, 125 A, 120 kA Breaking Capacity
  • MPN: C22M125
  • UPC: 051712589949
  • PPN: BUS-C22M125

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$112.62/ EA

Specifications

General

UPC
051712589949
Product Length/Depth
58 mm
Product Width
22.2 mm
Warranty
1 year limited
Certifications
IEC 60269
EAN5027590495677
Product Height22.2 mm
Product Weight55.9 g
CompliancesContact factory

Specifications

Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Material
Silver-plated copper endcap
Amperage Rating
125 A
Utilization category
aM (switchgear protection)
Type
fuse
Breaking capacity
120 kA
Frequency rating - min
45 Hz
Voltage rating
400 V
Voltage type
AC
Construction size22 mm x 58 mm
Quantity10
Release characteristicOther
Frequency rating - max62 Hz
Fuse typeCylindrical
Fuse shapeCylindrical
Fuse size22 x 58 mm
ClassClass aM
Applicationmotor protection | for industrial applications
Packaging typeStandard
