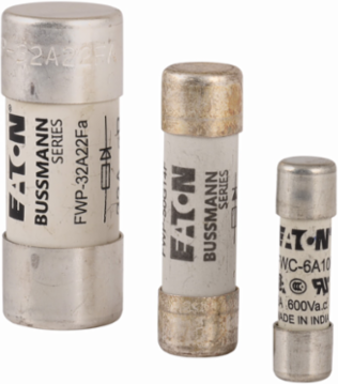

Bussmann C22M80S Low Voltage Fuse 22 x 58 mm, 80 Amps, 500 V AC, 120 kA Breaking Capacity, Class aM
- MPN: C22M80S
- UPC: 051712666862
- PPN: BUS-C22M80S
CAD
$304.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Fuse 22 x 58 mm, 80 Amps, 500 V AC, 120 kA Breaking Capacity, Class aM
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | With striker |
|---|---|
| Interrupt rating | 120 kAIC |
| Quantity | 10 |
| Mounting method | Holder |
| Amperage Rating | 80 A |
| Utilization category | aM (switchgear protection) |
| Fitted with: | Striker |
| Breaking capacity | 120 kA |
| Frequency rating - min | 45 Hz |
| Voltage rating | 500 V |
| Voltage type | AC |
| Special features | Striker |
|---|---|
| Construction size | 22 mm x 58 mm |
| Material | Ceramic body |
| Release characteristic | Other |
| Frequency rating - max | 62 Hz |
| Type | fuse |
| Fuse shape | Cylindrical |
| Fuse size | 22 x 58 mm |
| Class | Class aM |
| Application | for industrial applications | for general purpose use |
| Packaging type | Standard |
General
| UPC | 051712666862 |
|---|---|
| Product Length/Depth | 58 mm |
| Product Width | 22 mm |
| Warranty | 1 year limited |
| Certifications | IEC 60269 |
| EAN | 5027590495936 |
|---|---|
| Product Height | 22 mm |
| Product Weight | 53.4 g |
| Compliances | Contact factory |
