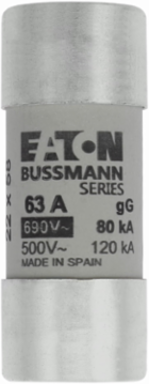

Bussmann C22G63 Low Voltage Cylindrical Fuse 22 x 58 mm 690V AC 63A 80kA Class gG/gL
- MPN: C22G63
- UPC: 051712754491
- PPN: BUS-C22G63
CAD
$89.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Cylindrical Fuse 22 x 58 mm 690V AC 63A 80kA Class gG/gL
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Non-indicating |
|---|---|
| Connection | Ferrule end x ferrule end |
| Material | Ceramic body |
| Amperage Rating | 63 A |
| Utilization category | gL/gG (cable protection/equipment protection) |
| Type | fuse |
| Breaking capacity | 80 kA |
| Frequency rating - min | 45 Hz |
| Voltage rating | 690 V |
| Voltage type | AC |
| Construction size | 22 mm x 58 mm |
|---|---|
| Quantity | 10 |
| Release characteristic | Other |
| Frequency rating - max | 62 Hz |
| Fuse type | Cylindrical |
| Fuse shape | Cylindrical |
| Fuse size | 22 x 58 mm |
| Class | Class C gL/gG |
| Application | for industrial applications | for general purpose use |
| Packaging type | Standard |
General
| UPC | 051712754491 |
|---|---|
| Product Length/Depth | 58 mm |
| Product Width | 22.2 mm |
| Warranty | 1 year limited |
| Certifications | IEC 60269 |
| EAN | 5027590495523 |
|---|---|
| Product Height | 22.2 mm |
| Product Weight | 54.8 g |
| Compliances | Contact factory |
