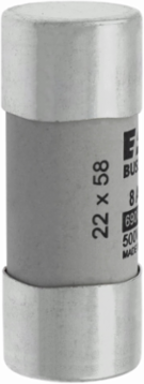

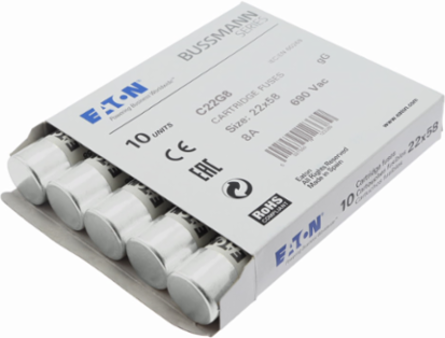

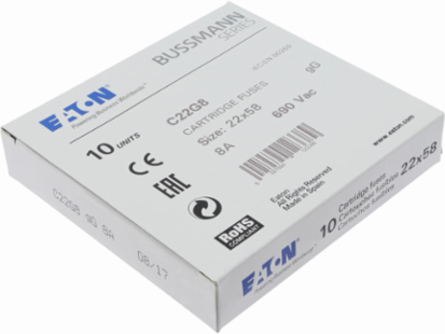

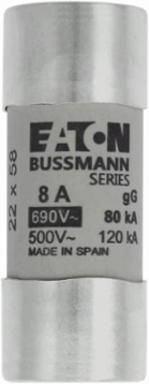

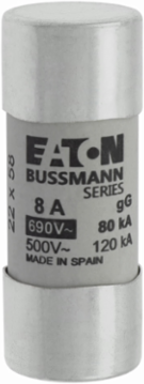

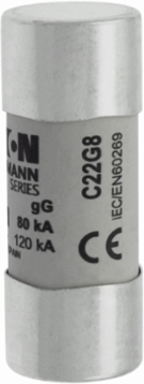

Bussmann C22G8 Cylindrical Fuse 22 x 58 mm, 690V AC, 8A, 80 kA Breaking Capacity, gL/gG Class
- MPN: C22G8
- UPC: 051712667319
- PPN: BUS-C22G8
CAD
$76.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cylindrical Fuse 22 x 58 mm, 690V AC, 8A, 80 kA Breaking Capacity, gL/gG Class
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Non-indicating |
|---|---|
| Connection | Ferrule end x ferrule end |
| Material | Silver-plated copper endcap |
| Amperage Rating | 8 A |
| Utilization category | gL/gG (cable protection/equipment protection) |
| Type | fuse |
| Breaking capacity | 80 kA |
| Frequency rating - min | 45 Hz |
| Voltage rating | 690 V |
| Voltage type | AC |
| Construction size | 22 mm x 58 mm |
|---|---|
| Quantity | 10 |
| Release characteristic | Other |
| Frequency rating - max | 62 Hz |
| Fuse type | Cylindrical |
| Fuse shape | Cylindrical |
| Fuse size | 22 x 58 mm |
| Class | Class C gL/gG |
| Application | for industrial applications | for general purpose use |
| Packaging type | Standard |
General
| UPC | 051712667319 |
|---|---|
| Product Length/Depth | 58 mm |
| Product Width | 22.2 mm |
| Warranty | 1 year limited |
| Certifications | IEC 60269 |
| EAN | 5027590495554 |
|---|---|
| Product Height | 22.2 mm |
| Product Weight | 54.5 g |
| Compliances | Contact factory |
